T'rex metal tank

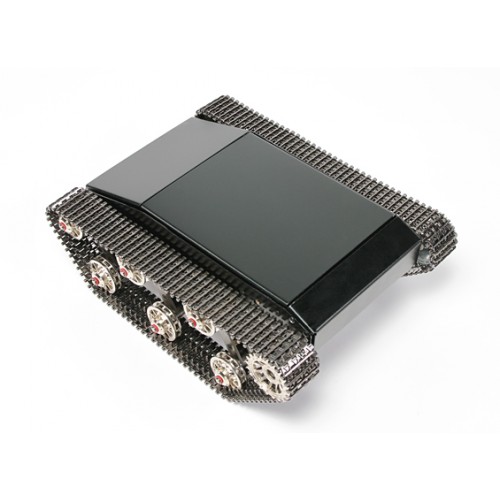

The T-Rex tank chassis is a durable, all metal robot chassis designed for traversing rough terrain. Its ultra high ground clearance, wide metal treads, independent suspension and two powerful brushed motors allow your robotic creations the freedom to go almost anywhere.

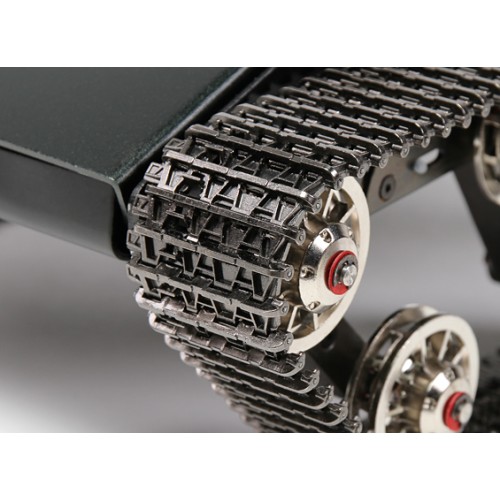

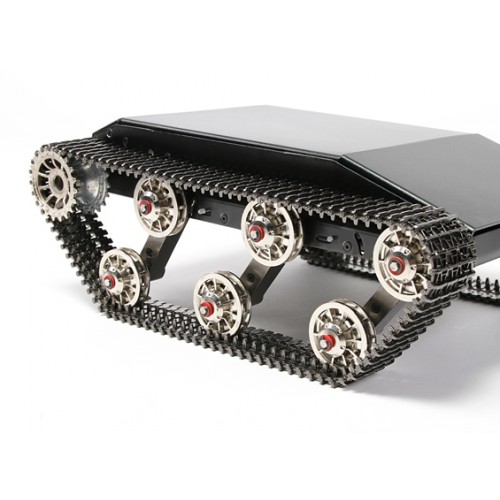

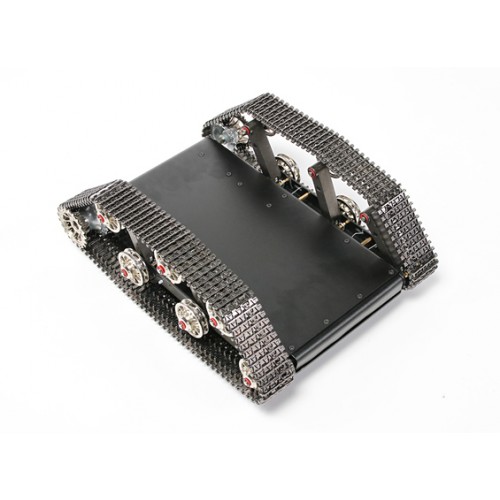

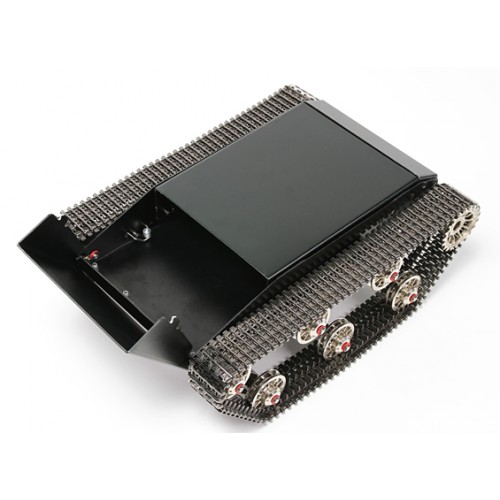

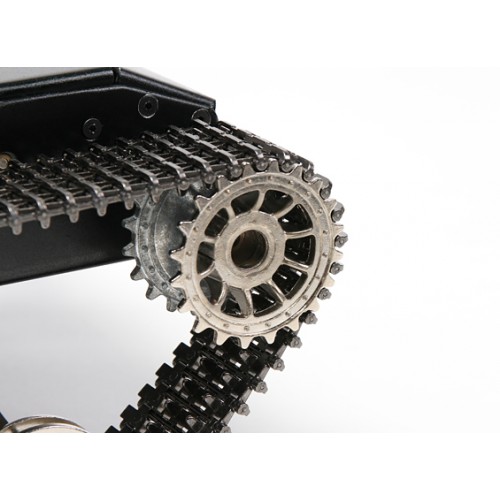

Inside the tank chassis is a large area for controllers and batteries to be installed and it features a quick access panel in the front for quick battery access. It also has a removable front sensor panel for mounting a wide variety of sensors. This all metal chassis is very rugged and offers good corrosion protection where it is needed. The tracks, suspension struts, wheels and gears are all made from die cast zinc and the main body from aluminum so no need to worry about mud, this really is the go anywhere chassis.

Recommended for a 3S 5000mAh LiPoly battery to power the 12V motors and the T-Rex controller (sold separately) giving maximum control for a number of applications.

Features:
• Large go anywhere tracks
• Solid construction
• Compatible with the T-Rex controller
• Zinc and aluminum anti corrosion construction
• Quick access battery hatch
• Can be fully customized
• All metal gearboxes

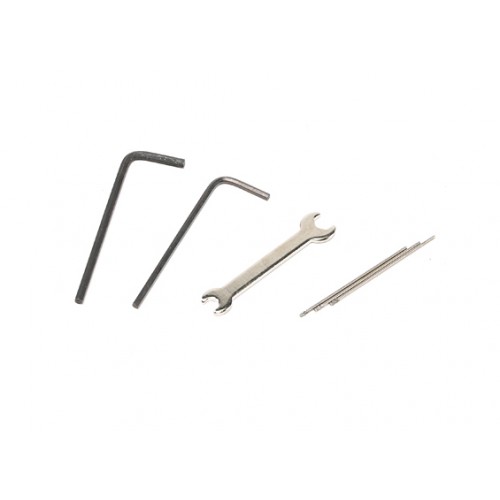

• Includes necessary tools for maintenance

Specs:
Dimensions: 355x265x130mm
Weight: 3.7kg
Ground Clearance: 70mm
Motor Voltage: 12V
Typical Current: 4A
Stall Current (Measured using 3s 5000mAh LiPoly): 11A

You can also view the tutorial for the outdoor test of T'rex metal tank:- https://www.youtube.com/watch?v=Nh6HvMhAG9k
