nRF C click

Product Code: MIKROE-1304

Brand: MikroElektronika

0 reviews | Write a review

₹1,999.00

GST inclusive

Qty:

Availability: Backorder

Add to Wish List

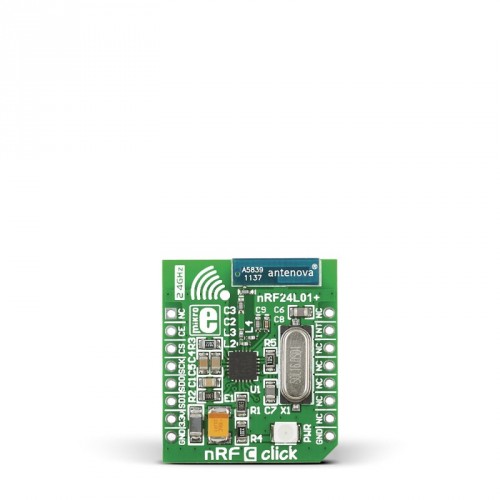

nRF C Click is an add-on board in mikroBUS form factor. It features Nordic nRF24L01P 2.4 GHz transceiver module with an embedded baseband protocol engine as well as 2.4 GHz SMD chip antenna. The board supports an air data rate of 250 Kbps, 1 Mbps and 2 Mbps and it is suitable for ultra low power designs. Typical applications include wireless PC peripherals, remotes, VoIP headsets, game controllers, sensors, home and commercial automation, active RFID, toys, etc. nRF C Click communicates with target board microcontroller via mikroBUS SPI (SDI, SDO, SCK, CS#), CE and INT lines. The board is designed to use 3.3V power supply only.

Specification

Type	RF 2.4GHz
Applications	Wireless PC peripherals, remotes, VoIP headsets, game controllers, sensors, home and commercial automation, active RFID, toys, etc
On-board modules	Nordic nRF24L01P 2.4 GHz transceiver
Key Features	Supports data rate of 250 Kbps, 1 Mbps and 2 Mbps and it is suitable for ultra low power designs
Key Benefits	On-board chip antenna
Interface	GPIO,SPI
Input Voltage	3.3V
Compatibility	mikroBUS
Click board size	S (28.6 x 25.4 mm)

Downloads

nRF C click Examples

nRF C click User Manual
