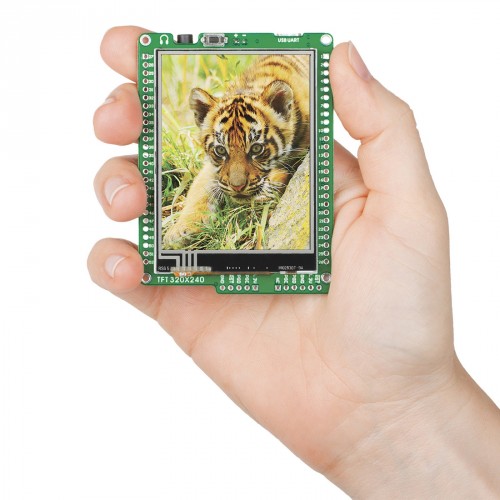

mikromedia for PIC32

Product Code: MIKROE-597

mikromedia for PIC32
mikromedia for PIC32
mikromedia for PIC32
mikromedia for PIC32

₹10,399.00
GST inclusive



Qty:

Availability: Backorder


Add to Wish List



Start building your first applications with intuitive, user-friendly menus and dashboards using PIC32MX microcontroller. This board provides a compact high-quality multimedia development platform for PIC32MX460F512L device.

Highlights. Large 320x240 TFT Color Display with Touch Screen and Stereo MP3 Codec chip with great performance give you true power to build GUI-centric embedded devices. Charge your batteries directly from USB port. No additional electronics, or expensive adapters. You can save pictures, sounds and other media files on microSD memory card and 8Mbit Serial Flash Memory and use it in your application. On-board ADXL345 Digital Accelerometer allows you to measure acceleration.

Programming. On-board PIC18FJ is preprogrammed with fast USB HID bootloader, so it’s ready to work right out of the box. You don’t have to spend a dollar more on programmers. For those who need it, board can also be programmed and debugged using the external mikroProg programmer.

Compilers. mikromedia for PIC32 is fully supported by mikroCmikroBasic and mikroPascal compilers for PIC32. Compilers come with dozens of examples that demostrate every feature of the board.

GUI design with Visual TFT. Easily create fantastic colourful graphical user interfaces (GUI) for mikromedia in VisualTFT software. Even total beginners will be able to create amazing applications.

Specification

Applications Best used as a development board but also as a final product. Use cases include industrial, medical, automotive and other dashboards and equipment.
Displays TFT full-color
Display size 2.8"
Resolution 320x240px
Graphic controller ILI9341
Touch Screen Resistive
Architecture PIC32 (32-bit)
MCU PIC32MX460F512L
MCU speed 80 MHz
MCU Memory 512 KB of Flash, 32 KB of RAM
Programming Preprogrammed with fast USB HID bootloader. Also features mikroProg for PIC, dsPIC and PIC32 connector.
Storage 8 Mbit Serial Flash, microSD card slot
Sound and Audio VS1053 MPEG audio decoder
Peripherals include USB connector, Accelerometer, Battery Charger
Expandability Two 1x26 headers, mikromedia standard pinout
Integration Mounting holes
Input Voltage 5V (via USB)

Downloads

 mikromedia for PIC32 User Manual

 mikromedia for PIC32 Examples

 mikromedia for PIC32 Schematic

 mikromedia for PIC32 Pinout

 USB HID PIC32MX4 mikroBootloader

 mikroBootloader PIC32 USB HID User Guide

 mikromedia for PIC32 AutoCad File
