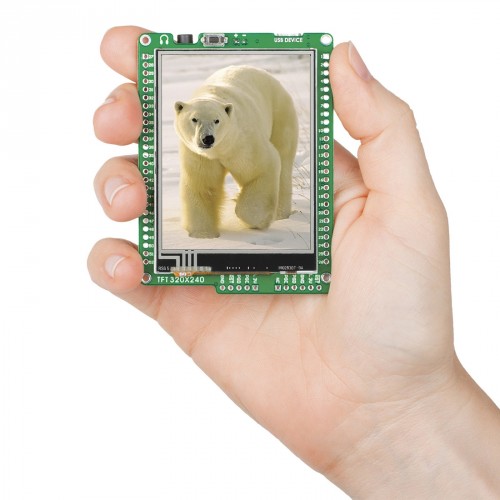

mikromedia for PIC24EP

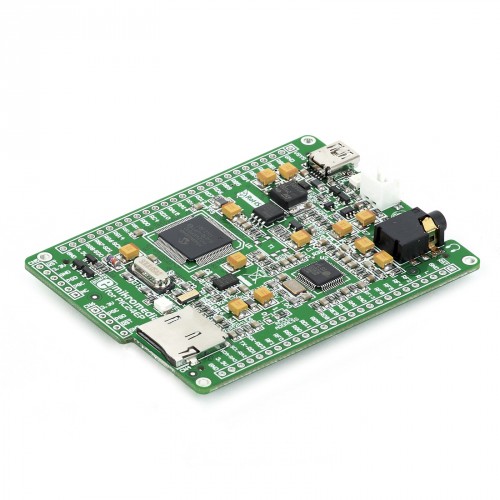

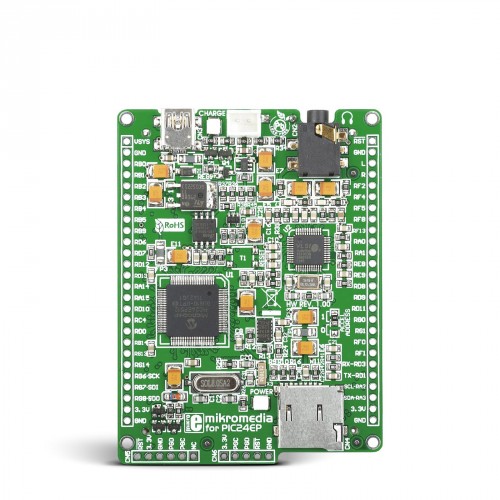

Start building your first applications with intuitive, user-friendly menus and dashboards using PIC24EP microcontroller. This board provides a compact high-quality multimedia development platform for PIC24EP512GU810 device.

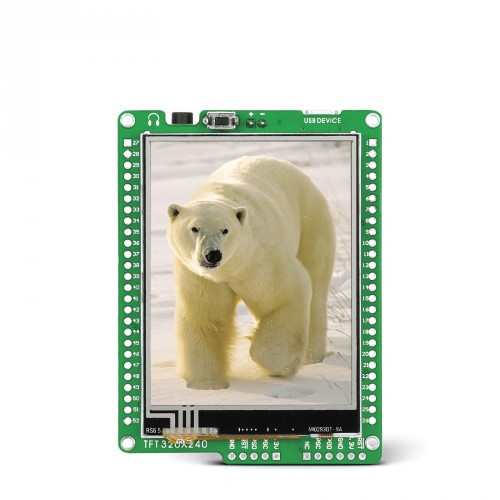

Highlights. Large 320x240 TFT Color Display with Touch Screen and Stereo MP3 Codec chip with great performance give you true power to build GUI-centric embedded devices. Charge your batteries directly from USB port. No additional electronics, or expensive adapters. You can save pictures, sounds and other media files on microSD memory card and 8Mbit Serial Flash Memory and use it in your application. On-board ADXL345 Digital Accelerometer allows you to measure acceleration.

Programming. On-board PIC24EP512GU810 is preprogrammed with fast USB HID bootloader, so it’s ready to work right out of the box. You don’t have to spend a dollar more on programmers. For those who need it, board can also be programmed and debugged using the external mikroProg programmer.

Compilers. mikromedia for PIC24EP is fully supported by mikroC, mikroBasic and mikroPascal compilers for dsPIC30/33 and PIC24. Compilers come with dozens of examples that demostrate every feature of the board.

GUI design with Visual TFT. Easily create fantastic colourful graphical user interfaces (GUI) for mikromedia in VisualTFT software. Even total beginners will be able to create amazing applications.

Specification

Downloads

 mikrobootloader for mikromedia for PIC24EP

 Mikromedia for PIC24EP User Manual

 Mikromedia for PIC24EP Schematics

 Mikromedia for PIC24EP Pinout

 Mikromedia for PIC24EP Examples

 mikromedia for PIC24EP AutoCad File
