mikromedia HMI Breakout Board
Product Code: MIKROE-2300
Description

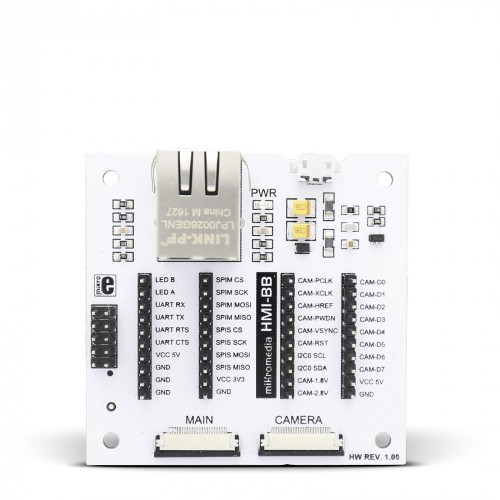

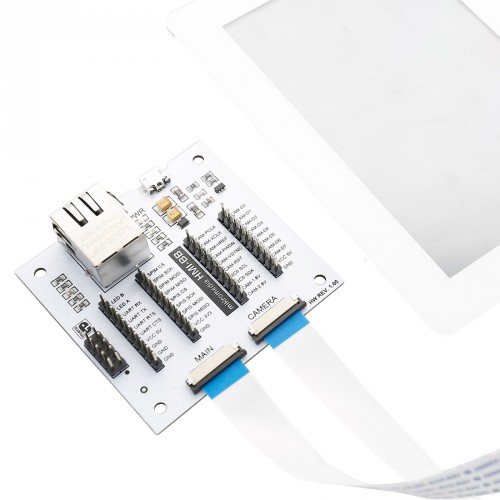

The mikromedia HMI breakout board is a simple accessory that conveniently enables developers to access pins from any of the 18 mikromedia HMI smart display boards. Each mikromedia HMI is powered by an FT900Q 32-bit MCU, and this board directly interfaces to it, which simplifies development in the prototyping phase (mikromedia HMI boards are intended for use as OEM parts). The breakout board also contains a micro USB port, an RJ-45 ethernet connector, as well as an external programmer connector (ideally used with mikroProg for FT90x). Two 24-pin flat cables are included in the packaging, enabling the use of both mikromedia HMI connectors at the same time (MAIN, CAMERA).
Specification
| Type | Adapter |
| Applications | Breakout board for mikromedia HMI, to simplify the development process. |
| Programming | mikroProg for FT90x connector |
| Interface | GPIO |
| Input Voltage | 5V (via USB) |
| Compatibility | mikromedia |
Downloads
mikromedia HMI Breakout Board Examples
