mikromedia 5 for Tiva
Product Code: MIKROE-1504

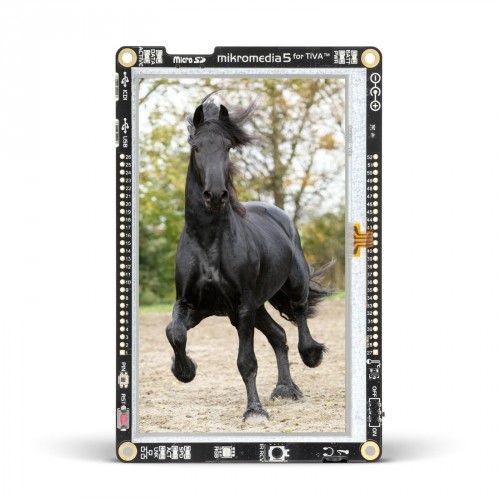

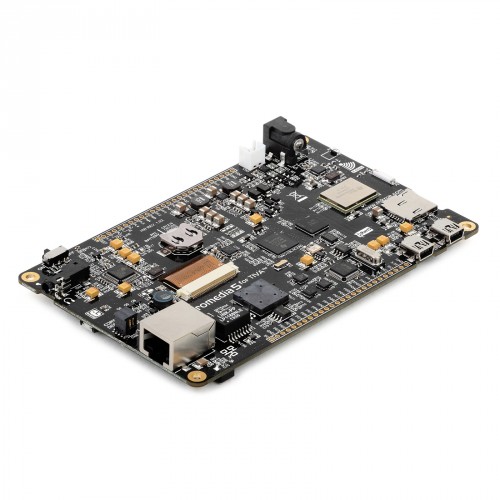

mikromedia 5 for Tiva
Start building your applications with intuitive, user-friendly menus and dashboards using powerful TI Tiva ARM Cortex-M4 microcontroller. This board provides a compact high-quality multimedia development platform for TM4C129xNCZAD device.
Powerful Workhorse
Mighty TM4C129xNCZAD rocks: 120 MHz operation, 1 MB of Flash, 256 KB of SRAM, µDMA controller, on-chip LCD controller and a lot more.

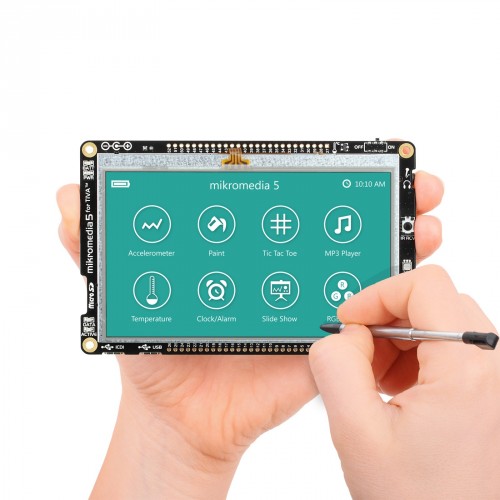

5” Touch Screen
The Huge touchscreen in 800x480px resolution brings awesome graphics and vivid colors. You’ve never seen such a big display driven just by a microcontroller.
CC3100 WiFi module
Internet of things - check! Insanely popular CC3100 WiFi module is right here for you. It features easy to use SimpleLink IPv4 TCP/IP stack.
Debugger on board
For the first time, we’re embedding programmer and debugger on mikromedia board. Just plug in the USB cable and there you go!
Programming
The board features mikroProg for Tiva™ programmer and debugger. All you need to do is plug the USB cable into ICDI connector and use mikroProg Suite for ARM or other programming software to upload new device firmware.
Compilers
mikromedia 5 for Tiva is fully supported by mikroC, mikroBasic and mikroPascal compilers for ARM. Compilers come with dozens of examples that demonstrate every feature of the board.
GUI design with Visual TFT
Easily create fantastic colorful graphical user interfaces (GUI) for mikromedia in Visual TFT software. Even total beginners will be able to create amazing applications.
Package Contains
- Damage resistant protective box
- mikromedia 5 for Tiva™ board
- USB cable, Ethernet cable and two 1x26 headers
- Plastic Pen, microSD card 2GB and 4 distances
- Documentation
Special discount on the Shield
Use this amazing opportunity and get the Shield for the mikromedia 5 for Tiva 50% OFF. Expand the functionality of your mikromedia with four mikroBUS™ sockets.
We have more than 300 click boards™ in the shop, from wireless transceivers and sensors to motor control click boards™ and displays.
Note: you need to add both the mikromedia and the Shield to the cart in order for the discount to apply.
Specification
| Applications | Best used as a development board but also as a final product. Use cases include industrial, medical, automotive and other dashboards and equipment. |
| Displays | TFT full-color |
| Display size | 5" |
| Resolution | 800x480px |
| Graphic controller | Embedded inside MCU |
| Touch Screen | Resistive |
| Architecture | ARM (32-bit) |
| MCU | TM4C129xNCZAD |
| MCU speed | 150 DMIPS, 120 MHz, 1.25 DMIPS/MHz |
| MCU Memory | 1024 KB of Flash, 256 KB SRAM |
| Programming | mikroprog for TIVA programmer and debugger |
| Key Benefits | We’re embedding programmer and debugger on mikromedia board. Just plug in the USB cable and there you go! |
| Wireless connectivity | Nordic nRF24L01+ transceiver, |
| Storage | 8MB SDRAM, microSD card slot |
| Sound and Audio | VS1053 stereo audio codec |
| Peripherals include | USB OTG connector, Temp. sensor, RTC battery, PIN photosensor, Accelerometer, Battery Charger |
| Expandability | Two 1x26 headers, mikromedia standard pinout |
| Integration | Mounting holes |
| Input Voltage | 5V (Via USB) or 5-12V DC (via external adapter) |
Downloads
mikroProg Suite for ARM® software
mikroProg for Stellaris® and TIVA™ Drivers
mikromedia 5 for Tiva User Manual
