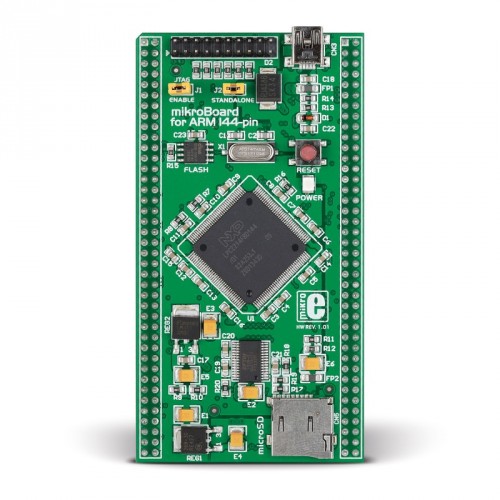

mikroBoard for ARM 144-pin
Product Code: MIKROE-650
The board features the LPC2214 microcontroller, flash module, USB connector, microSD connector, JTAG connector, USB UART, voltage regulator and connectors that enable connection with the development system.
LPC2214 is connected to on board modules via pins which are also connected to CN1 and CN2 connectors. These two connectors enable the board to be connected to the EasyARM v6 development system or some other device.
Downloads
mikroBoard for ARM 144-pin User Manual
mikroBoard for ARM 144-pin Examples
Specification
| Architecture | ARM (32-bit) |
| MCU | LPC2214 |
| MCU speed | 60MHz |
| MCU Memory | 256 KB of Flash, 16 KB of SRAM |
| Programming | Via external JTAG programmer or USB-UART bootloader |
| Expandability | Two 2x60 female connectors |
| Input Voltage | 5V (via USB) |
| Compatibility | UNI-DS6 |
