mangOH® boards

These boards are reference designs purpose-built for cellular to bring interoperability between various sensor, wireless, and wired technology providers.

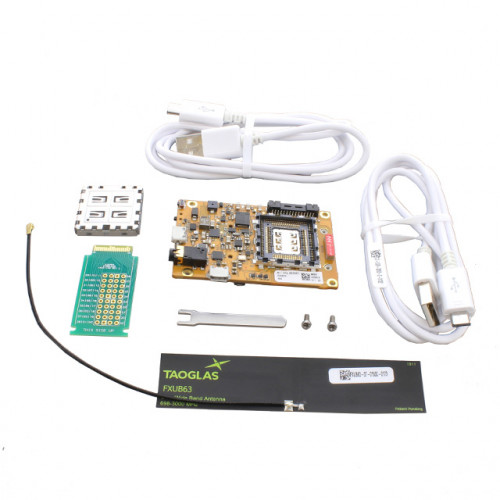

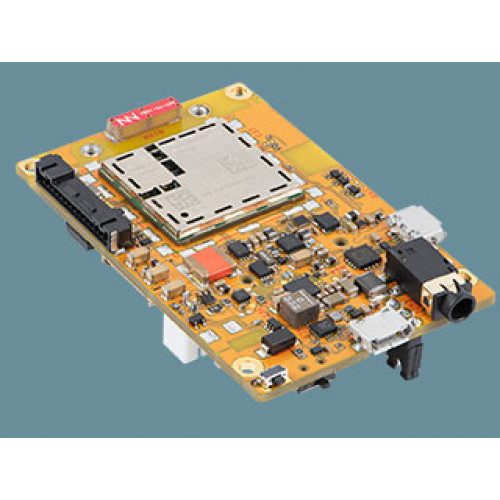

mangOH® Yellow

Introducing the super smart edge open source solution for IoT. Smaller than a credit card yet jam-packed with super sensors, mangOH Yellow connects your devices to any LTE-M and NB-IoT networks in the world, reducing cost, lowering power consumption, while extending coverage and expanding capacity.

<iframe width="1520" height="855" src="https://www.youtube.com/embed/mZq2N41ykjc" title="mangOH yellow video" frameborder="0" allow="accelerometer; autoplay; clipboard-write; encrypted-media; gyroscope; picture-in-picture; web-share" allowfullscreen></iframe>

mangOH Yellow

Build low-power IoT applications that can run for 10 years on a battery with the newest and smallest mangOH platform for sending edge data to the cloud.

• Compact form-factor you could build on, test, or even take any IoT application to market including small tracking devices
• A snap-in socket to add any CF3©-compatible modules, including wireless modules (2G to 4G & LTE-M/NB-IoT, GPS) to achieve up to 10 years of battery life;
• An IoT Expansion Card slot to plug in any technology based on the IoT Expansion Card open standard
• Built-in Wi-Fi b/g/n and Bluetooth 5.0 BLE , Bluetooth Mesh, NFC tag
• Built-in antennas for cellular, GPS, WiFi, Bluetooth and NFC
• Built-in Accelerometer, Gyroscope, Magnetometer, Pressure, Humidity, Acoustic mic, Air Index quality, temperature, and Light sensors
• Battery charger and battery gauge
• Multiple LEDs , buzzer and touch button
• 15 pin IO expansion connector, SD card, 2-way audio connector
• Battery charger and battery gauge
• Cloud and connectivity provided for Octave ( 3 months subscription included)
• 3D-printable case designs available

mangOH® Yellow Highlights

Hardware

• Includes a cellular modem for wirelessly connecting your IoT applications over a mobile network
• Powerful ARM-based application processor with GNSS receiver
• Built-in sensors including Accelerometer, and Gyroscope
• Can be powered by a battery for low-power wireless applications

Software

• Pre-integrated with the open source Legato Linux platform for application-level development
• Robust connectivity APIs lets you access cloud and network services such as voice calls, SMS, data, radio controls
• Maintained Linux distribution based on the long-term supported Linux kernel (LTSI) hosted by the Linux Foundation

Cloud and Connectivity Services

• 100 MB of data with Sierra Wireless Smart SIM
• Device and SIM management provided through AirVantage
• Octave platform from Sierra Wireless (3 months subscription included)
• Connect to your cloud infrastructure

Documentation


mangOH Yellow Datasheet

Community Support

mangOH on Github

mangOH Forum
