Zigbee Repeater

zigB-R is a long distance wireless repeater used to extend the transmission range and improve the quality ofwireless signal. This Device can’t form a network but will join an existing network and helps in increasing the data transmission range.

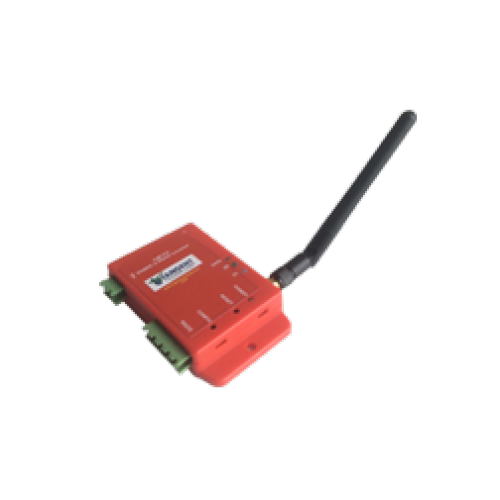

It comes in a rugged plastic casing with integrated antenna and inbuilt virtual com port. A free Windows compatible GUI configuration utility is available. The utility allows users to set different configurations based on the type of application, together with several of required ZigBee variables.

Specifications:

-> Input Power: DC 9-36V
-> Temperature:-40°C –85°C
-> Interface: Virtual COM (For Configuration)
-> Wireless Frequency:2.4GHz
-> Wireless Protocol:ZigBee2007 / PRO Transfer
-> Distance:700 meters for in sighted distance
-> MAX Send current:34mA
-> MAX receiving current:25mA
-> Receiving sensitivity:-97dBm
-> Core: ZigBee certified Microcontroller from Texas Instruments
-> Mounting flanges for easy wall mounting
-> Free GUI Configuration Software (Windows Version)
-> Based on certified Zigbee Stack from Texas Instruments.
