WidowX Robot Arm Kit w/ ROS(No Servo)

Download the WidowX Datasheet

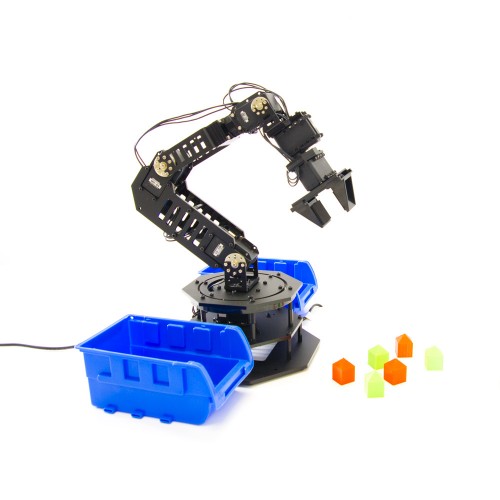

The WidowX Robot Arm Mark II is the update to Interbotix Labs' entry level arm offering for the MX series of DYNAMIXEL Servos. The Mark II has a few improvements that we've made based upon our own testing as well as customer feedback. We've upgraded the elbow servo from an MX-28 to an MX-64 complete with custom aluminum brackets for added frame strength, replaced the Arbotix with the new Arbotix-M, and streamlined the arm structure to be lighter, simpler, and stronger. The MX series actuators provide a full 360 degree freedom of movement in the base, ultra-high resolution of 4096 positions, user-definable PID parameters, and extremely smooth interpolation. The hefty MX-64 shoulder & elbow servos gives the WidowX very strong lifting strength in a slim frame. If you are looking for medium lifting strength and desire smooth control, high accuracy and repeat-ability the WidowX is a great mid-level arm choice.

Product Features: Industry Leading MX-64, MX-28 and AX-12 Servos Solid 14cm Ball Bearing Base Arbotix Robocontroller for Onboard Processing Custom Parallel Gripper Mounting Brackets for Cameras & Sensors ROS Package Includes: 2x MX-64 Dynamixel Actuators 2x MX-28 Dynamixel Actuators 2x AX-12A Dynamixel Actuators WidowX Arm Hardware & Frame Kit ArbotiX Robocontroller 12v 10a Power Supply FTDI 5v Programming Cable Intel SR300 Camera & Stand w/ measurement tool Laptop - ROS pre-installed and tested 15.6" 1080p Widescreen Display 7th Generation Intel Core i3-7100U Processessor 4GB DDR4 Memory 1 TB Hard Drive Comprehensive kit Includes: 2x MX-64 Dynamixel Actuators 2x MX-28 Dynamixel Actuators 2x AX-12A Dynamixel Actuators WidowX Arm Hardware & Frame Kit ArbotiX Robocontroller 12v 10a Power Supply FTDI 5v Programming Cable No Servos kit Includes: WidowX Arm Hardware & Frame Kit ArbotiX Robocontroller 12v 10a Power Supply FTDI 5v Programming Cable

A rugged design and 14cm diameter ball bearing rotational base ensures maximum rigidity and accuracy. Optional wrist rotate allows for up to 5 degrees of freedom, along with a custom designed parallel gripper for high precision and maximum gripping strength. You will need to sand your gripper for smooth operation, more details available in theassembly guide.

The WidowX Robot Arm has up to a 41cm horizontal reach and 55cm of vertical reach. At a 10cm reach it can lift up to 800g, and at 30cm up to 400g. The gripper itself has a rated holding strength of up to 500g, while the wrist itself can lift up to 500g horizontally. (400g if using wrist rotate).

MX DYNAMIXELs support up to 360 degrees of motion, which results in an extraordinary range of motion and reach on the WidowX . Temperature monitoring, positional feedback, as well as voltage levels, load, and compliance settings are user accessible as well.

The onboard Arbotix Robocontroller can be programmed using the Arduino IDE or custom firmware, providing 8 digital and analog IOs, Xbee wireless or USB connectivity, and a powerful ATMega644p capable of handling Inverse Kinematics code onboard.

• ATMega644p Microprocessor
• 8 Analog & 8 Digital IOs
• Physical, Xbee Wireless, & USB/TTL Serial control options
• Arduino IDE compatible
• Custom firmware capable
• ROS Ready

Getting Started Guide

• ArbotiX Getting Started Guide
• DYNAMIXEL ID Guide
• Arm Assembly Guide
• Build Check / Test Program
• WidowX Arm with ROS Getting Started Guide
• XBee Configuration Optional
• ArbotiX Commander Setup Optional
• LiPo Battery Guide Optional

Demo Code

• InterbotiX Arm Link Software Getting Started Guide

• Arm Link Sequence Playback
• Wireless Handheld Control for the WidowX Robot Arm
• DYNAPose - DYNAMIXEL/ArbotiX Pose Tool
• Untethered Pose Playback with DYNAMIXEL/ArbotiX
• Arm Link Overview
• Virtual Commander - Generic Software Robot Control

Projects

• InterbotiX Arm Link Software - Advanced Use with Processing 3.0
