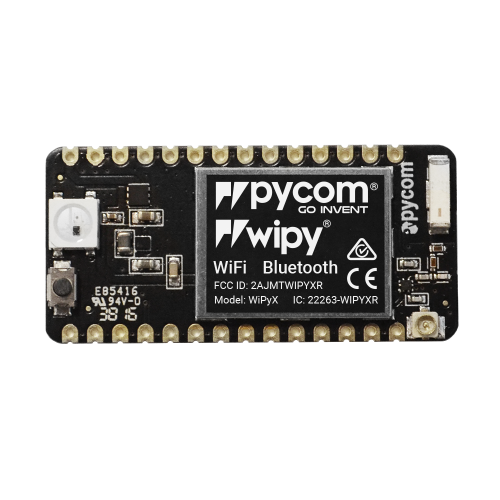

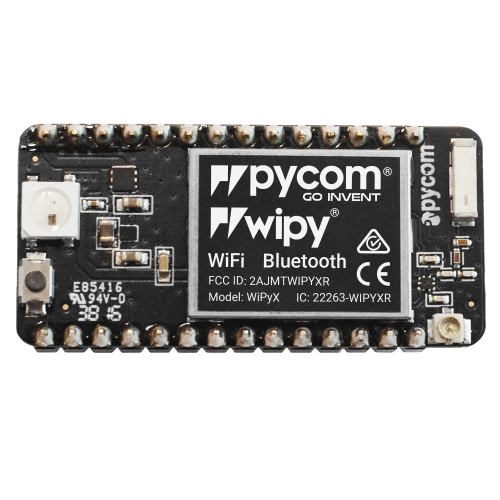

WiPy 3.0 with Header

WiPy 3.0 is Pycom’s updated enterprise grade IOT development platform. The tiny MicroPython enabled WiFi & Bluetooth IoT development platform. With a 1KM WiFi range, state of the art Espressif ESP32 chipset and dual processor, the WiPy 3.0 is all about taking the Internet of Things to the next level.

We’ve written an powerful and intuitive Python API to take advantage of every feature of the hardware. The learning curve is minimal. Simply put, Pycom boards are all about Python and the internet, but with rocket fuel.

If you are purchasing the WiPy 3.0 and wish to connect via USB to your computer, you will also need to purchase either the Expansion Board 2.0, Pysense or Pytrack.

Features

• Powerful CPU, BLE and state of the art WiFi radio

• 1KM WiFi range

• MicroPython enabled, the Linux of IoT for fast deployment

• Fits in a standard breadboard (with headers)

• Ultra-low power usage: a fraction compared to other connected micro controllers

Processing

• Espressif ESP32 chipset

• Dual processor WiFi radio system on chip

• Network processor handles the WiFi connectivity and the IPv6 stack

• Main processor is entirely free to run the user application

• An extra ULP-coprocessor that can monitor GPIOs, the ADC channels and control most of the internal peripherls during deep-sleep mode while only consuming 25uA

Interfaces

• 2 x UART, 2 x sPI, I2C, I2S, micro SD card

• Analog channels: 8_12 bit ADCs

• Timers: 4_16 bit with PWM and input capture

• DMA on all peripherals

• GPIO: Up to 24

Hash/Encryption

• SHA, MD5, DES, AES

WiFi

• 802.11b/g/n 16mbps

Bluetooth

• Low energy and classic

RTC

• Running at 32KHz

Power

• 3.3V to 5.5V

• 3V3 output capable of sourcing up to 550mA

Security & Certifications

• SSL/TLS support

• WPA Enterprise security

• FCC 2AJMTWIPY3R

• CE 0700

Memory

• RAM: 4MB

• External flash: 8MB

• Hardware floating point acceleration

• Python multi-threading

Size

• 42mm x 20mm x 2.5mm (excluding headers)
