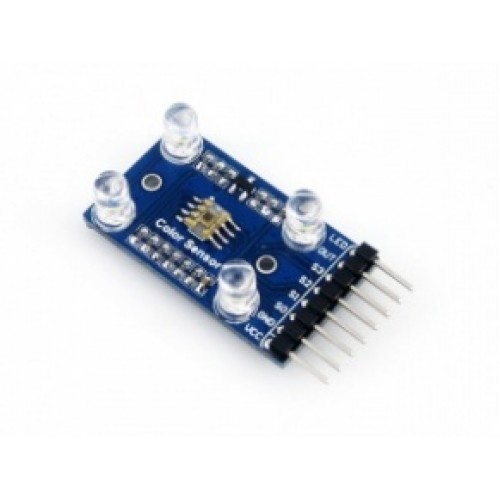

Color Sensor

• Sensor Chip: TCS3200 (RGB color detector)
• Detects static color, the output is a square wave with frequency directly proportional to incident light intensity
• Supports fill-light by onboard LEDs

Specifications

• Power: 2.7V ~ 5.5V
• Ideal detection distance: 10mm
• Dimension: 36.0mm * 20.6mm
• Mounting holes size: 2.0mm

Applications

• Sorting by color
• Ambient light sensing and calibration
• Test strip reading
• Color matching

How to Use

In the case of working with a MCU:

• VCC ↔ 2.7V ~ 5.5V
• GND ↔ power supply ground
• LED ↔ MCU.IO (controlling the 4 white LEDs)
• OUT ↔ MCU.IO (RGB color output frequency)
• S0/S1 ↔ MCU.IO (Output frequency scaling selection inputs)
• S2/S3 ↔ MCU.IO (Photodiode type selection inputs)

S0/S1 selects the output frequency scaling factor, S2/S3 selects the color filter of red, green, blue, then OUT outputs a square wave with frequency proportional to the selected color intensity. The detected color can be determined by the ratio of the intensity of red, green and blue.

PACKAGE CONTENT

1. Color Sensor x1
2. 4-pin custom connector jumper wire x2

Note:

• Avoids environment light noise

• White balance is required when the first time using the module, reseting the module, or changing the light source
