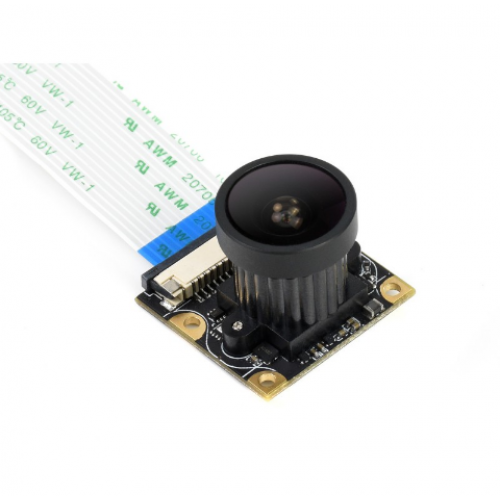

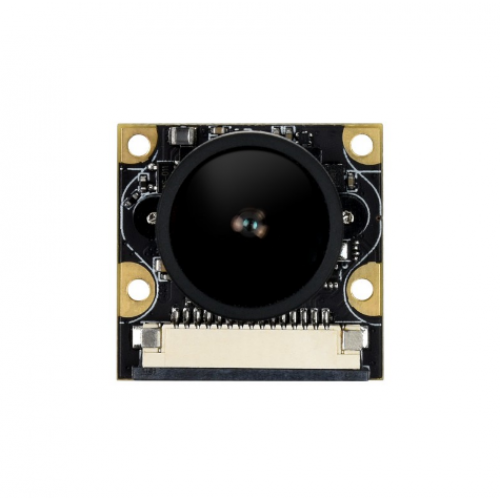

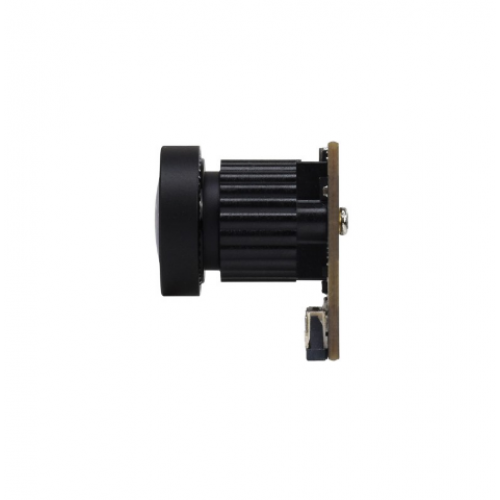

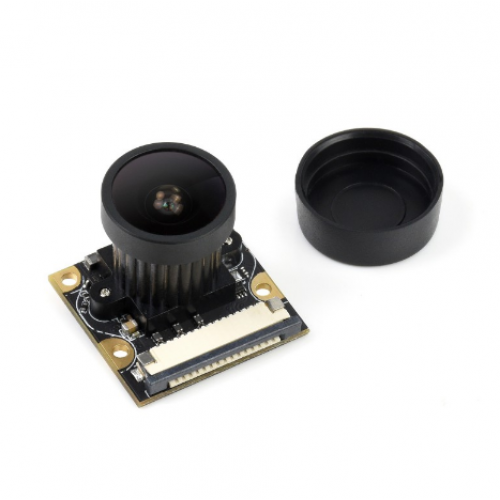

IMX219-200 Camera, 200° FOV, Applicable for Jetson Nano
Product Code: Waveshare 19211
-500x500.png "IMX219-200 Camera, 200° FOV, Applicable for Jetson Nano")
-500x500.png "IMX219-200 Camera, 200° FOV, Applicable for Jetson Nano")
-500x500.png "IMX219-200 Camera, 200° FOV, Applicable for Jetson Nano")
-500x500.png "IMX219-200 Camera, 200° FOV, Applicable for Jetson Nano")
12.3MP CAMERA MODULE
IMX477 Sensor, 12.3MP, Applicable For Jetson Nano / Compute Module
Specifications
| SENSOR | Model | Sony IMX477 |
|---|---|---|
| Resolution | 12.3MP, 4056 × 3040 | |
| CMOS diagonal length | 7.9mm | |
| pixel size | 1.55µm (H) × 1.55µm (V) | |
| CAMERA | Aperture (F) | 2.2 |
| Focal length (BFL) | 5.52 | |
| Field of view (FOV) | 160°(D) 118°(H) 87°(V) | |
| Distortion | <16% | |
| OPERATING VOLTAGE | 3.3V | |
| APPLICATIONS | suitable for AI applications like: facial recognition, road mark recognition, license plate number recognition, and so on. | |
Working With Jetson Nano
Jetson Nano Developer Kit B01 (Left) And Jetson Nano 2GB Developer Kit (Right)
*Jetson Nano is NOT included, and specific driver is required for the Jetson Nano to use the IMX477 camera module.
Working With Raspberry Pi Compute Module
Compute Module 4 + IO Board (Left) And Compute Module 3 + IO Board (Right)
*CM4, CM3, IO Board, and the yellow FFC are NOT included.
Outline Dimensions
