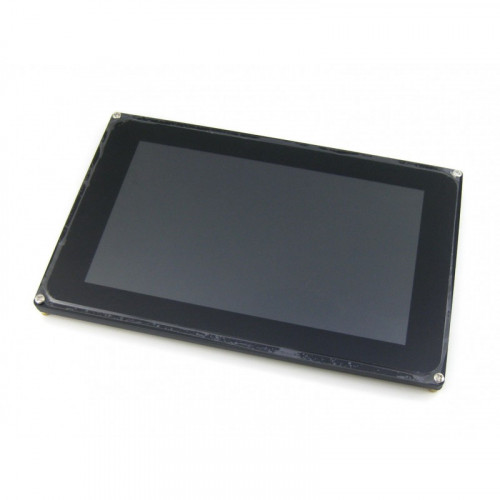

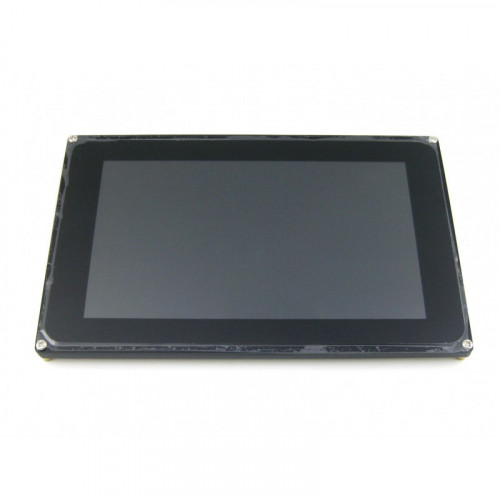

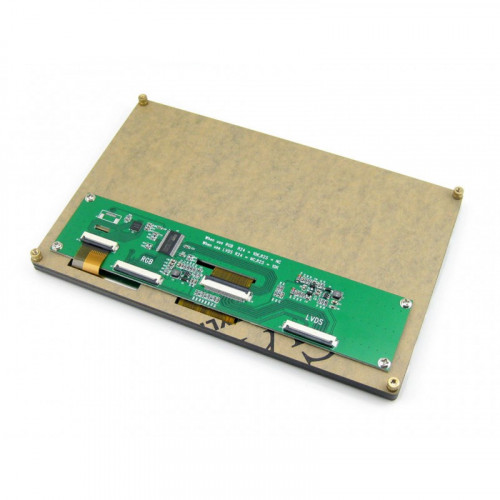

7inch Capacitive Touch LCD (D) 1024x600

Product Code: Waveshare 8959

Brand: Waveshare Electronics

₹4,849.00

GST inclusive

Qty:

Availability: Discontinued

Add to Wish List

Key Parameters

RGB Interface Definition

Pin No.	Symbol	I/O	Function
40	BL_VDD	Power	Backlight power supply connect 5V
39	BL_VDD	Power	Backlight power supply connect 5V
38	GND	Power	Power ground
37	VDD	Power	Power supply voltage connect 3.3V
36	R0	Input	Red data (LSB)
35	R1	Input	Red data
34	R2	Input	Red data
33	R3	Input	Red data
32	R4	Input	Red data
31	R5	Input	Red data
30	R6	Input	Red data
29	R7	Input	Red data (MSB)
28	G0	Input	Green data (LSB)
27	G1	Input	Green data
26	G2	Input	Green data
25	G3	Input	Green data
24	G4	Input	Green data
23	G5	Input	Green data
22	G6	Input	Green data
21	G7	Input	Green data (MSB)
20	B0	Input	Blue data (LSB)
19	B1	Input	Blue data
18	B2	Input	Blue data
17	B3	Input	Blue data
16	B4	Input	Blue data
15	B5	Input	Blue data
14	B6	Input	Blue data
13	B7	Input	Blue data (MSB)
12	GND	Power	Power ground
11	PCLK	Input	Pixel clock
10	LCD-BL-EN	Input	LCD backlight on/off, On=1; Off = 0;
9	HSYNC	Input	Horizontal Sync Signal
8	VSYNC	Input	Vertical Sync Signal
7	DE	Input	Data Enable
6	LCD-BL-ADJ	Input	LCD backlight Control (PWM control)
5	GND	Power	Power ground
4	CTP-SDA	Input/Output	CTP I2C SDA
3	CTP-SCL	Input	CTP I2C SCL
2	CTP-RST	Input	CTP Reset input
1	CTP-INT	Output	CTP Interrupt output

LVDS Interface Definition

Pin No.	Symbol	I/O	Function
40	NC		No Connector
39	VDD	Power	Power voltage connect 3.3V
38	VDD	Power
37	VDD	Power
36	GND	Power	Power ground
35	GND	Power
34	GND	Power
33	LVDS-D0N	Input	LVDS differential data input
32	LVDS-D0P	Input	LVDS differential data input
31	GND	Power	Power ground
30	LVDS-D1N	Input	LVDS differential data input
29	LVDS-D1P	Input	LVDS differential data input
28	GND	Power	Power ground
27	LVDS-D2N	Input	LVDS differential data input
26	LVDS-D2P	Input	LVDS differential data input
25	GND	Power	Power ground
24	LVDS-CLKN	Input	LVDS differential clock input
23	LVDS-CLKP	Input	LVDS differential clock input
22	GND	Power	Power ground
21	LVDS-D3N	Input	LVDS differential data input
20	LVDS-D3P	Input	LVDS differential data input
19	GND	Power	Power ground
18	NC		No Connector
17	NC		No Connector
16	GND	Power	Power ground
15	CTP-SCL	Input/Output	CTP I2C SDA
14	CTP-SDA	Input	CTP I2C SCL
13	CTP-RST	Input	CTP reset input
12	CTP-INT	Output	CTP interrupt output
11	GND	Power	Power ground
10	BL_GND	Power	Backlight Power ground
9	BL_GND	Power
8	BL_GND	Power
7	NC		No Connector
6	LCD-BL-ADJ	Input	LCD PWM backlight control
5	LCD-BL-EN	Input	LCD backlight on/off, On=1; Off=0;
4	NC		No Connector
3	BL_VDD	Power	Backlight power supply connect 5V
2	BL_VDD	Power
1	BL_VDD	Power

External Dimension

7inch Resistive Touch LCD external dimension

Development Resources

Wiki : www.waveshare.com/wiki/7inch_Capacitive_Touch_LCD_(D)

Compatibility
