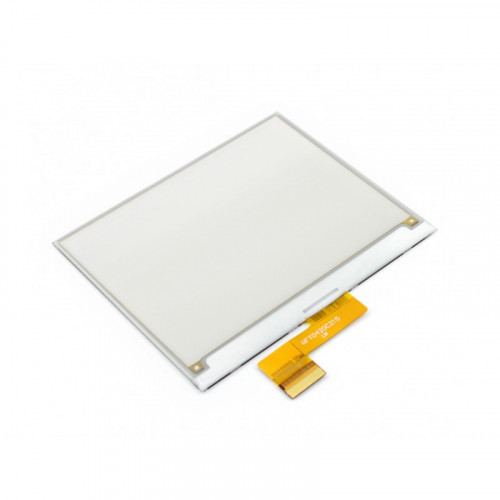

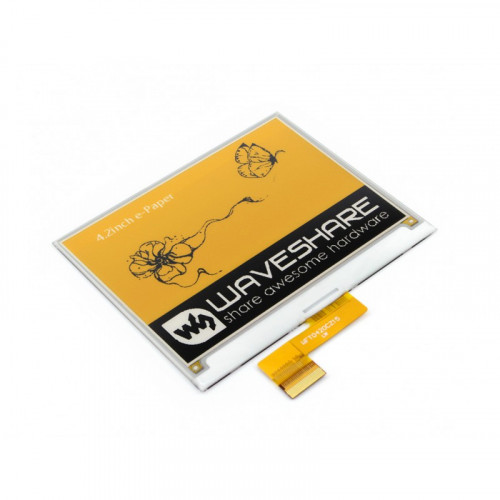

400x300, 4.2inch E-Ink raw display, yellow/black/white three-color

400x300, 4.2inch E-Ink raw display, yellow/black/white three-color, SPI interface, without PCB.

This is an E-Ink raw display, 4.2inch, 400x300 resolution, with embedded controller, communicating via SPI interface, supports yellow, black, and white three-color display.

Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.

Features

• No backlight, keeps displaying last content for a long time even when power down
• Ultra low power consumption, basically power is only required for refreshing
• Comes with development resources and manual (driver board schematic, examples for Raspberry Pi/Arduino/STM32)

Specifications

• Operating voltage: 3.3V
• Interface: 3-wire SPI, 4-wire SPI
• Outline dimension: 90.1mm × 77.0mm × 1.18mm
• Display size: 84.8mm × 63.6mm
• Dot pitch: 0.212 × 0.212
• Resolution: 400 × 300
• Display color: yellow, black, white
• Grey level: 2
• Full refresh time: 15s
• Refresh power: 26.4mW(typ.)
• Standby power: <0.017mW
• Viewing angle: >170°

PACKAGE CONTENT

Note: This is a raw display, you may also want to buy the assembled variant for easy testing and comparing: 4.2inch e-Paper Module (C)

1. 4.2inch e-Paper (C) x1

Development Resources

Wiki : www.waveshare.com/wiki/4.2inch_e-Paper_Module_(C)
