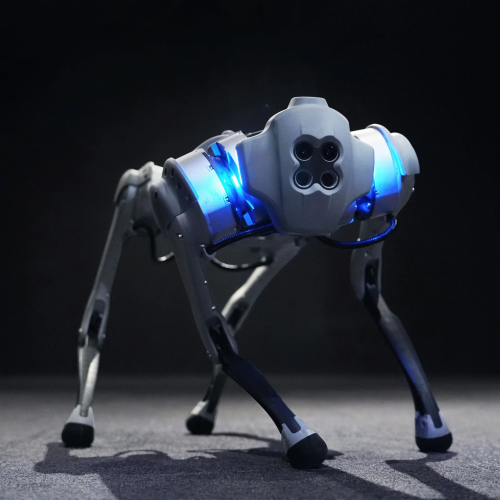

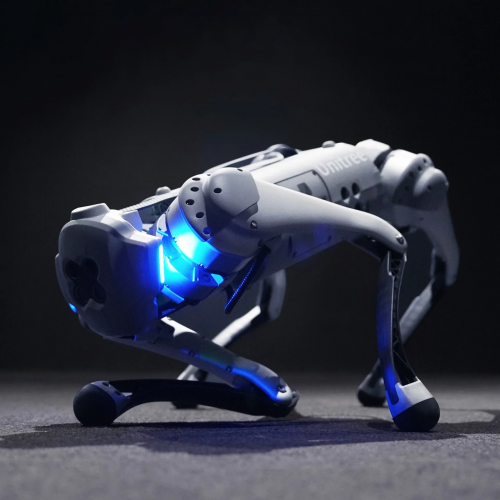

Unitree GO1
Go 1 is a quadruped robot equipped with an intelligent lateral tracking system:
Adopt patented wireless vector positioning and control technology
The robot walks alongside its human master, with an improved tracking system.
Able to help the robot choose a better route in a complex environment.
Main features:
16 core CPU + GPU (384Core, 1.5TFlops)

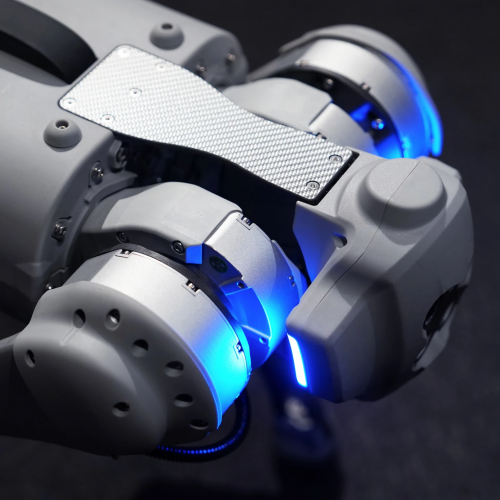

New power joint with superlight
Heat pipe cooling system built into the knee joint motor.
Body / Thigh Joints: C1-8 520g 23.70N.m
Knee joint: C1-8 x 1.5ratio 35.55N.m
Full view coverage
5 sets fish-eye stereo depth cameras + AI post-processing + 3 sets hypersonic sensors
Lens angle: 150 x 170°
|
|
|
Aplications:
R&D
Load transport
Inspection
Security
Entertainment
Specifications :
| Model Nº | Go 1 |
| Interface | HDMI*3; Gigabit Ethernet port*1; USB*3; 2 |
| Size | Folded: 54cm * 29 cm * 13 cm (Standard Version) |
| Weight | 12 kg (with battery) |
| Voltage | 5V, 12V, 24V |
| Speed | 3.7 m/s（Versión Air 2.5m/s） |
| Load capacity | 5kg（EDU version), 3kg（other version） |
| Autonomy | 1 - 2 h |
| Max. climbing angle | 35º |
Must Watch :
Links for More Details :
Datasheet 1
Datasheet 2
