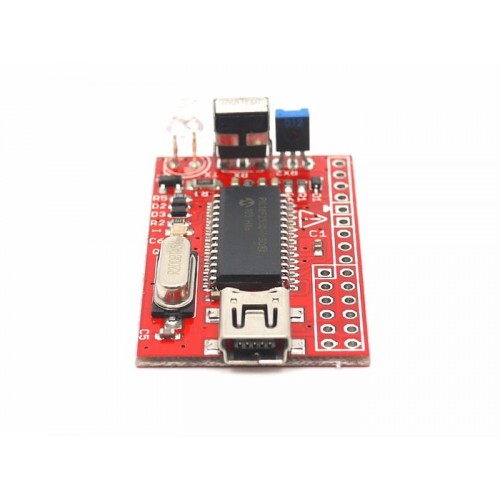

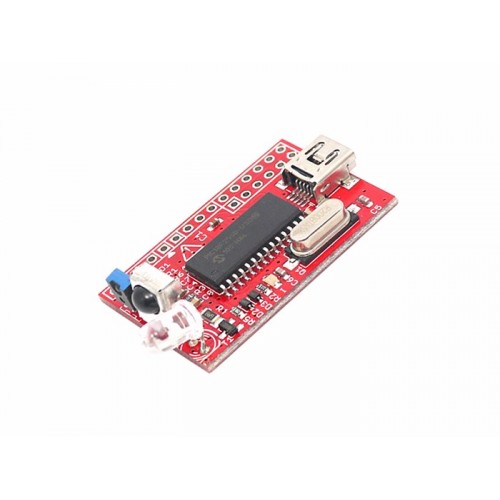

USB Infrared Toy v2

Assembled USB infrared remote control receiver/transmitter v2 designed by DangerousPrototypes.com. Use a remote control with your computer, view infrared signals on a logic analyzer, capture and replay remote control buttons, and play TV POWER codes.

Features

• NEW: 100mA constant current IR transmitter with improved range

• NEW: Infrared frequency measurement

• NEW: Pin breakout area

• Infrared remote control decoder (RC5)

• Infrared signal logic analyzer

• Capture and replay infrared signals

• USB connection, USB bootloader for easy updates

• Supported in WinLIRC

• Open source (CC-BY-SA)

The internal self-test is performed on each IR Toy before it ships.

• Infrared Toy Manual

• Infrared Toy v2 hardware design overview

• Infrared Toy forum

This open source hardware and software is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE.

Techsupport

This product is designed by Dangerous, If you encounter any problems when using this product, please request technical support in the forum.

Technical Details

Part List

Documents
