U2D2_INT

Product Code: ROBT 902-0132-000

U2D2_INT

₹3,589.00
GST inclusive



Qty:

Availability: Backorder


Add to Wish List



Features :-

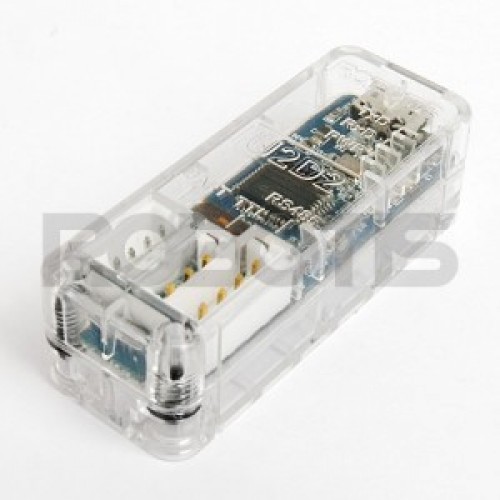

U2D2 is a small size USB communication converter that enables to control and to operate the DYNAMIXEL with the PC.
It is smaller than the previous model and has mount holes to make it easier to install on robots.
It uses the USB cable to connect to the PC and prevents damage of the USB terminals.
It has both 3Pin connectors for TTL communication and 4Pin connectors for RS-485 communication embedded for easier control and access for the Dynamixel X series. (Supports UART as well.)

*Requires the convertible cable in order to use Dynamixels using Molex connector.

Package Components

U2D2 1
USB Micro-B Cable 1

Robot Cable-X3P

180mm (Convertible)

1

Robot Cable-X4P

180mm (Convertible)

1

H/W Specifications

Dimension 48mm x 18mm x 14.6mm
Weight 9g
Available Ports

- 3 Pin TTL Level : TTL Communication supported DYNAMIXEL

- 4 Pin RS-485 : RS-485 Communication supported DYNAMIXEL

- 4 Pin UART : Controllers that support 4 Pin UART(such as CM-150 and CM-200)

Baud Rate Max 6Mbps

Compatible Products

Products requiring Molex-JST conversion cable :

- Included in the package
- Dynamixel AX/MX-Series Models (TTL and RS-485 versions)
- Dynamixel Pro Models (RS-485 version)

Products using basic JST cable :
- Dynamixel X-Series Models (except for XL-320, but can be used when modifying the cable)
- X3P and X4P Convertible cables  are included in the basic package and/or sold separately.

Caution
U2D2
 does not supply power to the DYNAMIXEL, therefore, an external power supply is required to provide power to the DYNAMIXEL.

Description USB2Dynamixel U2D2
Used connector and switch PC to Board USB Male A Connector O X
Micro USB Female B Jack X O
RS-232 Communication J_DSUB9P Male O X
UART Communication 20010-WS04 X O
RS-485 Communication Molex 4P O X
JST 4P X O
TTL Communication Molex 3P O X
JST 3P X O
Used communication RS-232c O X
RS485 O O
TTL O O
UART X O
USB TO UART IC FT232RL(FTDI) Max 3Mbps X
FT232HL(FTDI) X Max 12Mbps
Supported OS Windows O O
Linux (2.6.9 or later) O O
Mac OS-X O O
Mount Holes Mounting holes for product fixation X O
Dimension Width x Length x Height (mm) 90x35x20 42x18x14.6
