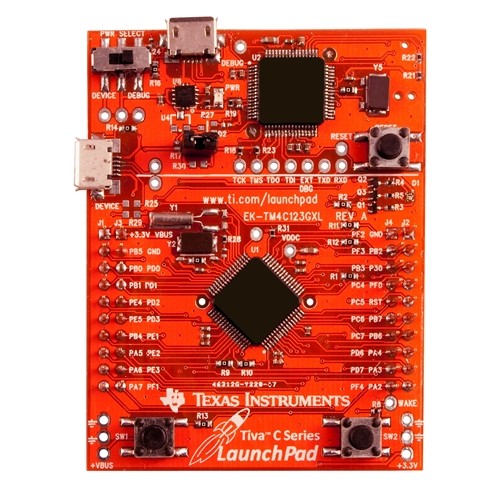

Tiva™ C Series TM4C123G LaunchPad Evaluation Kit

Description

The TM4C123G LaunchPad Evaluation Kit is a low-cost evaluation platform for ARM Cortex-M4F based microcontrollers from Texas Instruments. The design of the TM4C123G LaunchPad highlights the TM4C123GH6PM microcontroller with a USB 2.0 device interface and hibernation module.

The EK-TM4C123GXL also features programmable user buttons and an RGB LED for custom applications. The stackable headers of the TM4C123G LaunchPad BoosterPack™ XL Interface make it easy and simple to expand the functionality of the TM4C123G LaunchPad when interfacing to other peripherals with Texas Instruments MCU BoosterPack.

Features

The ARM Cortex-M4F Based MCU TM4C123G LaunchPad Evaluation Kit (EK-TM4C123GXL) offers these features:

• High Performance TM4C123GH6PM MCU:
  • 80MHz 32-bit ARM Cortex-M4-based microcontrollers CPU
  • 256KB Flash, 32KB SRAM, 2KB EEPROM
  • Two Controller Area Network (CAN) modules
  • USB 2.0 Host/Device/OTG + PHY
  • Dual 12-bit 2MSPS ADCs, motion control PWMs
  • 8 UART, 6 I2C, 4 SPI
• On-board In-Circuit Debug Interface (ICDI)
• USB Micro-B plug to USB-A plug cable
• Preloaded RGB quick-start application
• ReadMe First quick-start guide

EK-TM4C123GXL TivaWare™ for C Series software is available for free downloads.

Documents

•  Datasheet
•  User Manual
