Teensy-LC without Pins

Product Code: Adafruit 2419

Teensy-LC without Pins
Teensy-LC without Pins
Teensy-LC without Pins
Brand: Adafruit

₹1,808.90
GST inclusive



Qty:

Availability: 1 In Stock


Add to Wish List

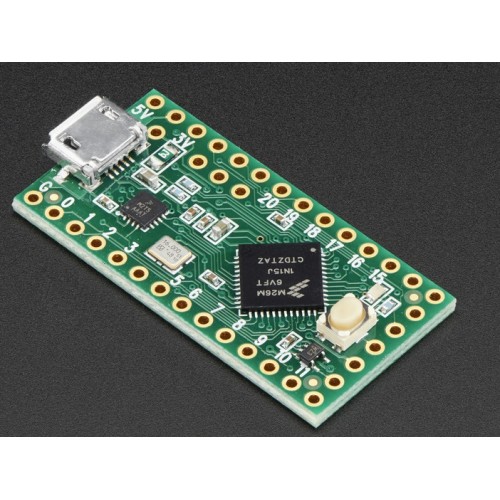

Teensy-LC (Low Cost) is a powerful 32 bit microcontroller board, with a rich set of hardware peripherals, at a very affordable price!

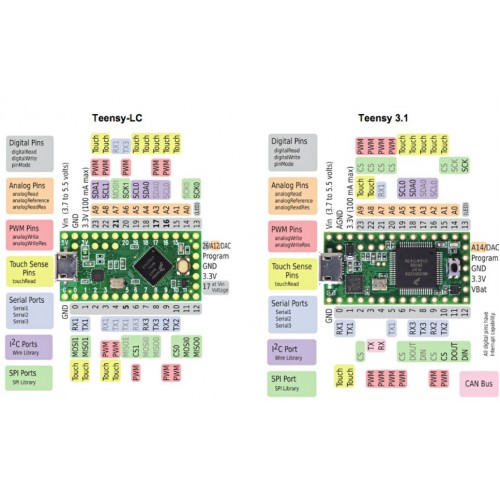

Teensy-LC delivers an impressive collection of capabilities to make modern electronic projects simpler. It features an ARM Cortex-M0+ processor at 48 MHz, 62K Flash, 8K RAM, 12 bit analog input & output, hardware Serial, SPI & I2C, USB, and a total of 27 I/O pins. See the technical specifications and pinouts for details. Teensy-LC maintains the same form-factor as Teensy 3.1, with most pins offering similar peripheral features.

TECHNICAL DETAILS

Dimensions

18mm x 37mm x 4mm / 0.7" x 1.5" x 0.2"

Weight

2.6g



Processor

MKL26Z64VFT4

Core

Coretx-M0+

Rated Speed

48 MHz



Flash Memory

62 KB

Bandwidth

96 MB/sec

Cache

64 bytes



RAM

8 KB

EEPROM

1/8 (emu) KB

Direct Memory Access

4 channels



Digital I/O

27 Pins

Voltage Output

3.3V + one 5V

Current Output

5mA + four 20mA

Voltage Input

3.3V



Analog Input

13 pins

Converters

1

Resolution

16 bits

Usable

12 bits

Prog Gain Amp

0

Touch Sensing

11 pins



Analog Output

1 pins

DAC Resolution

12 bits



Timers

7 total

FTM Type

3

PWM Outputs

10 pins

PDB Type

0

CMT (infrared) Type

0

LPTMR Type

1

PIT (interval) Type

2

Systick

1

RTC (date/time)

 0



 Communication



USB

1

Serial

3

With FIFOs

0

High Res Baud

0

Fast Clock

1

SPI

2

With FIFOs

1

I2C

2

CAN Bus

0

I2S Audio

1

FIFO Size

4
