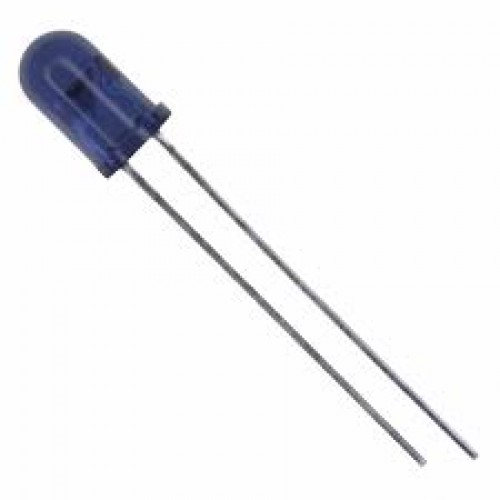

TSAL6200 is an infrared, 940 nm emitting diode in GaAlAs/GaAs technology with high radiant power molded in a blue-gray plastic package.

Features:

• Package type: leaded

• Package form: T-1¾

• Dimensions (in mm): Ø 5

• Peak wavelength: λp = 940 nm

• High reliability

• High radiant power

• High radiant intensity

• Angle of half intensity: ϕ = ± 17°

• Low forward voltage

• Suitable for high pulse current operation

• Good spectral matching with Si photodetectors

• Compliant to RoHS Directive 2002/95/EC and

in accordance to WEEE 2002/96/EC

Applications:

• Infrared remote control units with high power requirements

• Free air transmission systems

• Infrared source for optical counters and card readers
