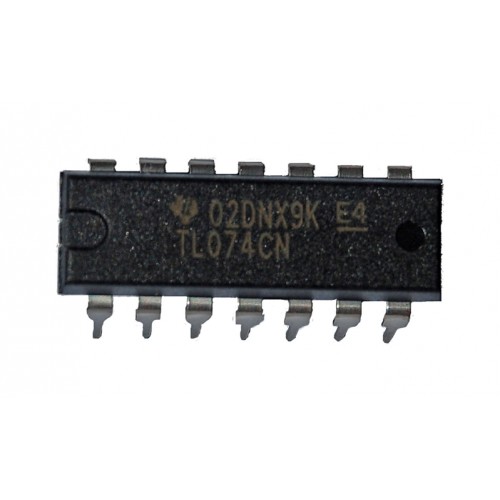

TL074 - General Operational Amplifier

The JFET-input operational amplifiers in the TL07x series are similar to the TL08x series, with low input bias and offset currents and fast slew rate. The low harmonic distortion and low noise make the TL07x series ideally suited for high-fidelity and audio preamplifier applications. Each amplifier features JFET inputs (for high input impedance) coupled with bipolar output stages integrated on a single monolithic chip.

The C-suffix devices are characterized for operation from 0°C to 70°C.The I-suffix devices are characterized for operation from −40°C to 85°C. The M-suffix devices are characterized for operation over the full military temperature range of −55°C to 125°C.

Features

• Low Power Consumption
• Wide Common-Mode and Differential Voltage Ranges
• Low Input Bias and Offset Currents
• Output Short-Circuit Protection
• Low Total Harmonic Distortion: 0.003% Typ
• Low Noise
  V_n = 18 nV/√Hz Typ at f = 1 kHz
• High Input Impedance: JFET Input Stage
• Internal Frequency Compensation
• Latch-Up-Free Operation
• High Slew Rate: 13 V/μs Typ
• Common-Mode Input Voltage Range
  Includes V_CC+
