T-Watch ESP32 S3 (868MHz Gun Color K215)

The Lilygo T-Watch S3 is a cutting-edge smartwatch that seamlessly blends advanced technology with a sleek design. Encased in an elegant silver finish, this smartwatch is equipped with a range of features that cater to both functionality and style.

At its core, the T-Watch S3 boasts an ESP32-S3 chip, providing powerful programmability and ensuring a smooth user experience. The inclusion of a 868MHz SX1262 LoRa module extends the smartwatch's communication capabilities, making it ideal for long-range and low-power communication applications.

The 400mAh battery ensures a reliable and long-lasting performance, allowing users to enjoy the full range of features without frequent recharging. The integration of a touch screen provides a user-friendly interface, allowing for easy navigation and quick access to various functions.

The T-Watch S3 includes a microphone, enabling voice commands and interactive features. The incorporation of both WIFI and Bluetooth connectivity further enhances its versatility, facilitating seamless integration with other devices and enabling convenient data transfer.

 User Manual / Datasheet / Example Codes Etc


Introduction

Specifications

• MCU : ESP32-S3
• FLASH : 16MB
• PS RAM : 8MB
• Display Size : 1.54inch Capacitive Touch
• Touch screen Chip : FT6236U
• LoRa : SX1262
• Platform : Arduino-IDE, ESP-IDF, VS Code, Micropython
• Wireless : Wi-Fi: 802.11 b/g/n/ Bluetooth: BLE V5.0
• Onboard Functions : RTC, Microphone, MAX98357A, Power Detection, BMA423 3-axis acceleration sensor
• DRV2605 : Haptic Driver Motor for ERM and LRA
• AXP2101 : Highly Integrated Power Management Unit

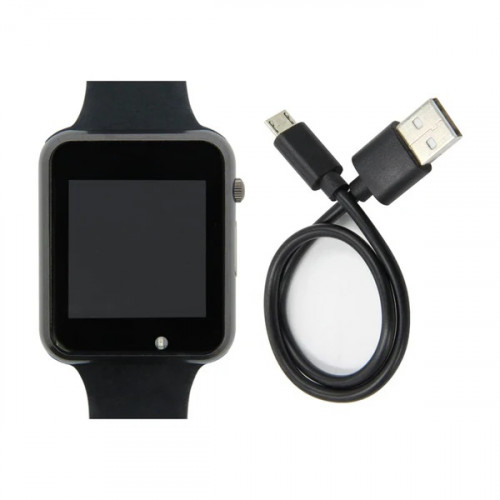

Package Includes

• 1 X T-Watch
• 1 X Cable
• 1 X User Manual

Pin Diagram

Dimensions
