Standard Gripper Kit B - Straight Mount

Description

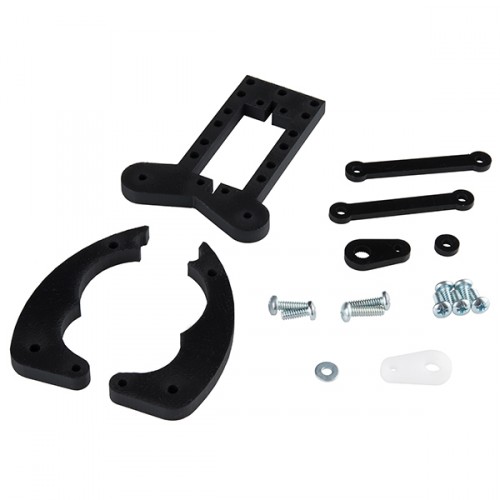

This is the Standard Gripper Kit B, a simple and durable robotics kit that is great for “getting a grip” on pretty much any robotics project! Designed for use with any standard size Hitec or Futaba servo, the gripper kit is easy to assemble and requires only a Phillips Head Screwdriver. This Standard Gripper is capable of opening an impressive 6" wide max, has an overall body length of 5" long with a 1.3" wide servo housing body, and offers 6-32 mounting through-holes along the edges of the servo housing.

Actobotics is a robotics building system based around extruded aluminum channels, gears, precision shafts, and ball bearings. Thanks to the two standardized hole patterns, nearly all Actobotics components can be intuitively connected together. The wide range of components makes building complex electromechanical prototypes or finished projects a reality.

Note: This kit does NOT include a servo.

Features:

• Opening Width - 6" (152mm)
• Mounting Hole ID - 0.1" (3.5mm)

Documents:

• Assembly Video
• Product Video
