SparkFun ISP Pogo Adapter

Description

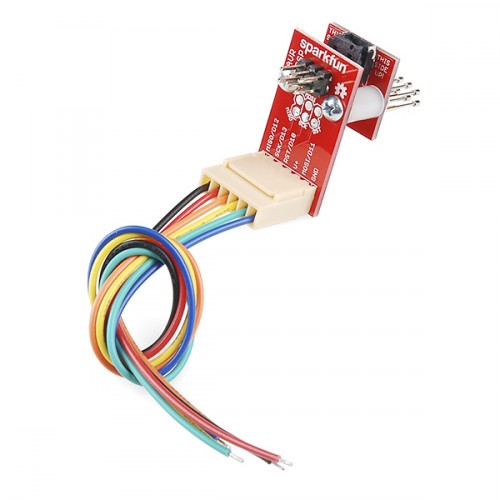

Pogo pins make life so much easier when you are trying to program without having to solder a single thing, and when you attach them to an In-system programming (ISP) adapter they become instantly better, this simple kit allows you to do just that. Introducing the ISP Pogo Adapter, a simple and easy way to adapt pogo pins to a 6-pin ISP header allowing you to program an IC still without soldering a header to do so.

We’ve also included a labeled SIP header row and a 6-pin molex cable for you to be able to use your Arduino (or other single-board microcontroller) as an ISP device!

This adapter does come as a kit and assembly will be required.

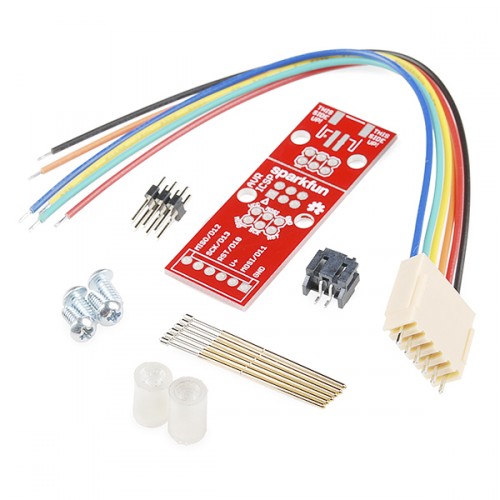

Kit Includes:

• 1x ISP Pogo Adapter PCB
• 1x Molex Jumper 6 Wire Assembly
• 1x JST Right Angle Connector
• 1x Male ISP Header
• 2x 3/8" Plastic Standoff
• 4x ¼" Phillips Head Screw
• 6x Pogo Pin with Pointed Tip

Documents:

• Schematic
• Eagle Files
• How We Use Pogo Boards
• GitHub
• Product Video
