This 120:1 gearmotor (gearbox with brushed DC motor) is very compact and weighs only 0.7 ounces (20 grams) — perfect for building a quick, miniature robot.
This gearmotor starts rotation at 0.58 V, drawing only 46.5 mA at 7 RPM. At 5 V, the gearbox and motor provide 20 oz-in of torque and 145 RPM. The free-running current is 88 mA, and the stall current is 610 mA. The low-current motor is a perfect match for our qik 2s9v1 dual serial motor controller.
This gearmotor comes pre-assembled, with the gears fully enclosed. A clutch limits the output torque to approximately 25 oz-in (which is produced at 6.5 V, drawing 650 mA) to protect the gearbox and motor. The unit has one mounting hole, and the chrome-finish output shaft is splined with a 0.08" (2 mm)-crest diameter.
A custom plastic wheel is available for this gearmotor, as well as a LEGO wheel adapterthat allows it to be used with a variety of LEGO wheels.
For a version of this gearmotor with the output shaft parallel to the motor shaft, see theGM6 gearmotor. For a similar but larger gearmotor, see the GM3 gearmotor (224:1) and the GM9 gearmotor (143:1).
Solarbotics GM7 gearmotor dimensions (in mm). |
---|
You can download a pdf version of this drawing with imperial dimensions (113k pdf) ormetric dimensions (113k pdf).

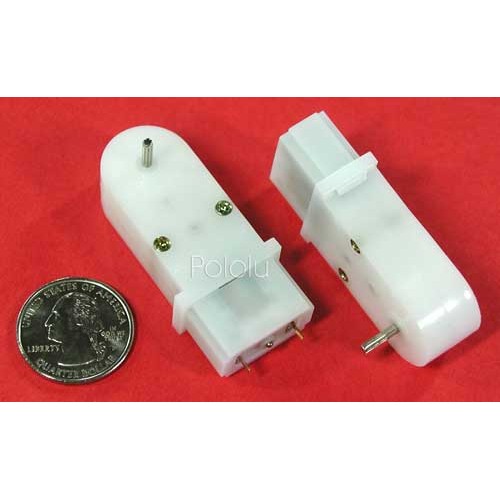

Though the product picture shows two gearmotors, this product is for a single motor.
