Smoke click

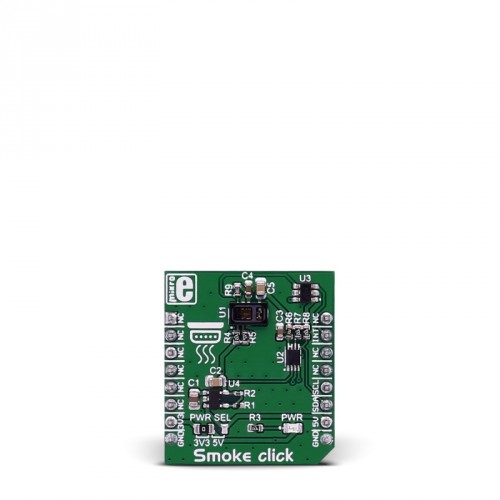

Smoke click carries the MAX30105 high-sensitivity optical sensor for smoke detection. The click is designed to run on either 3.3V or 5V power supply. It communicates with the target MCU over I2C interface with additional functionality provided by the INT pin on the mikroBUS™ line.

MAX30105 sensor features

The MAX30105 is an integrated particle-sensing module. It includes internal LEDs, photodetectors, optical elements, and low-noise electronics with ambient light rejection. The sensor can detect a wide variety of smoke particle sizes.

The MAX30105 also has an on-chip temperature sensor for calibrating the temperature dependence of the particle sensing subsystem. The temperature sensor has an inherent resolution 0.0625°C.

Power consumption

Power supply current in Shutdown mode is typically 0.7μA. The module can be shut down through software with zero standby current, allowing the power rails to remain powered at all times.

Building an IoT smoke detection device

Adding WiFi connectivity to your smoke detection sensor is always a good idea. You can get a message as soon as the level of smoke goes over the set threshold. For example, Smoke click and WiFi ESP click together would do that job wonderfully.

Specifications

Pinout diagram

This table shows how the pinout on Smoke click corresponds to the pinout on the mikroBUS™ socket (the latter shown in the two middle columns).

Notes	Pin					Pin	Notes
	NC	1	AN	PWM	16	NC
	NC	2	RST	INT	15	INT	Active-Low Interrupt (Open-Drain).
	NC	3	CS	TX	14	NC
	NC	4	SCK	RX	13	NC
	NC	5	MISO	SCL	12	SCL2	I2C Clock Input
	NC	6	MOSI	SDA	11	SDA2	2C Clock Data, Bidirectional (Open-Drain)
Power supply	+3.3V	7	3.3V	5V	10	+5V	Power supply
Ground	GND	8	GND	GND	9	GND	Ground

Programming

Code examples for Smoke click, written for MikroElektronika hardware and compilers are available on Libstock.

Code snippet

This snippet initializes the system and the Smoke click board, sets the module in MultiLED mode, reads and shows data on UART.

01 void main( void )
02 {
03   system_init();
04   smoke_init();
05   smoke_set_registers_default();
06
07   while ( true )
08   {
09     smoke_read_data();
10     uart_show();
11     Delay_ms( 1000 );
12   }
13 }

Downloads

 LibStock: Smoke click library
