Signal Relay click
Signal Relay click
Signal Relay click
Signal Relay click

₹3,049.00
GST inclusive



Qty:

Availability: Backorder


Add to Wish List

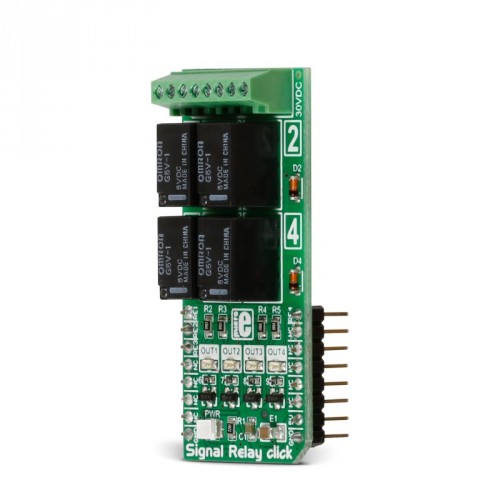

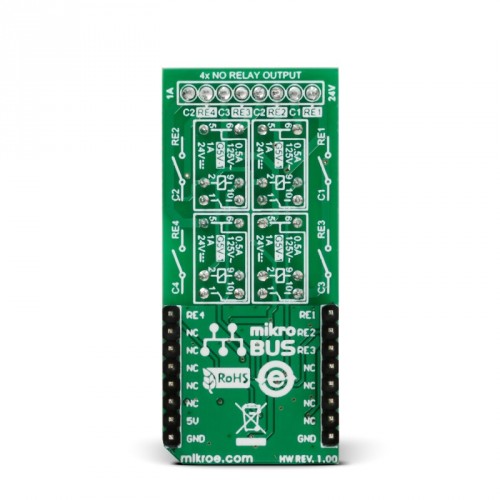

Signal Relay click can be used for ON/OFF control in various devices. It carries four ultra-small GV5-1PCB relays from Omron and runs on a 5V power supply. Signal Relay click communicates with the target MCU over the following mikroBUS pins: AN, RST, CS and PWM.

Maximum continuous current

The relay contacts are designed for a maximum of 1A of continuous current. The Signal Relay click board is configured so that the switch circuit supply a maximum of 24VAC/30VDC voltage of a power supply source.

LED

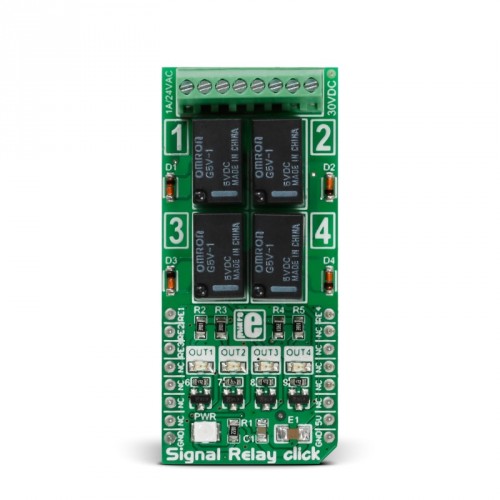

Each GV5-1 relay has its own LED on the board that signalizes whether the relays is switched on or off.

Application

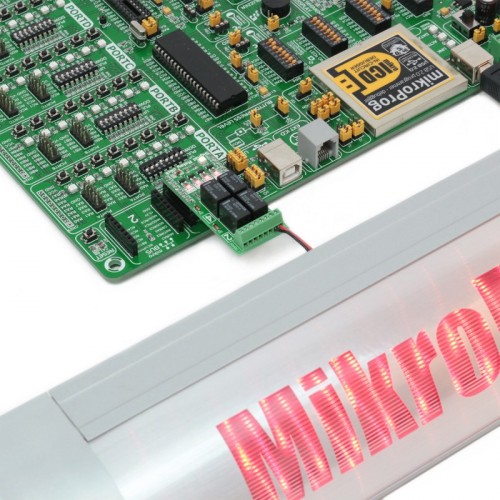

ON/OFF control in various home automation devices, like alarm units, lamps, heaters, etc. It can also be used for energizing coils of bigger relays and contactors in industrial AC schemes (12/24V).

Specifications

Type Relay
Applications ON/OFF control in various home automation devices, like alarm units, lamps, heaters, etc. It can also be used for energizing coils of bigger relays and contactors in industrial AC schemes (12/24V)
On-board modules GV5-1 PCB relays from Omron
Key Features Power switching from 1 mA to 1 A, Maximum contact resistance 100 mΩ, 150 mW nominal coil power consumption
Key Benefits 4 pairs of screw terminals
Interface GPIO
Input Voltage 5V,5V
Compatibility mikroBUS
Click board size L (57.15 x 25.4 mm)
