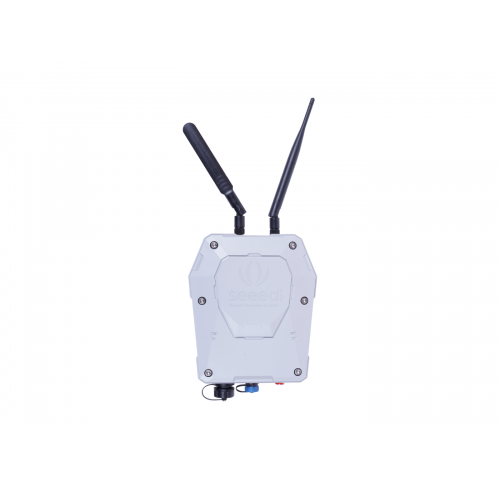

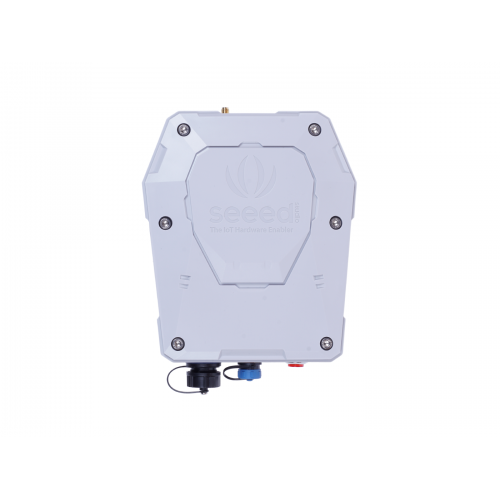

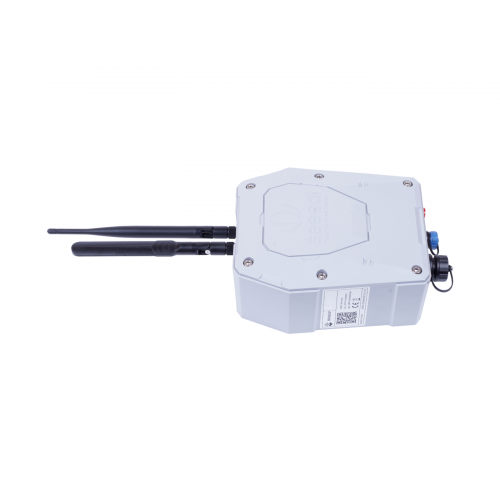

SenseCAP Gateway - LoRaWAN EU868MHz
SenseCAP Gateway - LoRaWAN is based on LoRaWAN protocol, applicable for low-power consumption, long-range environmental data collection, and remote monitoring scenarios such as smart agriculture and smart city.
As the central device of SenseCAP LoRaWAN network, the gateway is used for collecting data from different SenseCAP Sensors and transmit the data to the cloud platform via cellular LTE or Ethernet. Equipped with a high-performance processor AM3358 and telecom-operator-level LoRa chip SX1301, this device ensures robustness and high performance in large-scale networks. Mutual authentication and encryption are established in the whole network to increase security.
The gateway is designed with an IP66 enclosure and supports an extended operating temperature range, making it suitable for industrial applications in both indoor and outdoor severe environments.
We offer different SenseCAP Gateway - LoRaWAN with different ISM bands:
- SenseCAP Gateway - LoRawan EU 868 ( subset of 863 - 870 MHz)
- SenseCAP Gateway - LoRawan US 915 ( subset of 902 - 928 MHz)
- SenseCAP Gateway - LoRawan CN 470 ( subset of 470 - 510MHz)
System Architecture
SenseCAP Architecture
SenseCAP Sensor + Other LoRaWAN Gateway Architecture
Features
- High-performance Cortex A8 1GHz processor, Linux system.
- Support LoRaWAN protocol Class A, support ultra-low-power SenseCAP Sensor
- Support 8 RX, 1 TX transceiver, maximum transmit power 27dBm
- Support multiple ISM bands: CN470, EU868, US915
- Support multiple methods to access the network: 4G, Ethernet
- Ultra-wide-distance transmission: 10km in line of sight scene, 2 km in the urban scene
- Industrial grade protection: IP66 enclosure, temperature -40℃~70℃, suitable for outdoor applications
- Easy deployment, and rapid provisioning (see the "how to install" video below)
Specifications
| General Parameters | |
|---|---|
| Product Model | LoRa-G-868-E/4G |
| CPU | TI AM3358 Cortex-A8 1GHz |
| System | Linux Debian |
| RAM | DDR3 512MB |
| Memory | 8GB eMMC |
| Channel Plan | 863~870MHz |
| LoRa Power Output | 25dBm |
| LoRa Sensitivity | -139.5dBm (SF12BW125) |
| Ethernet | 100Mbps FE (RJ-45) |
| 4G Band |
LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28 LTE-TDD: B38/B39/B40/B41 WCDMA: B1/B2/B4/B5/B6/B8/B19 GSM: 850/900/1800/1900MHz |
| 4G Features |
Support non-CA Cat 4 FDD and TDD LTE-FDD: Max 150Mbps (DL), Max 50Mbps (UL) LTE-TDD: Max 130Mbps (DL), Max 30Mbps (UL) |
| UMTS Features |
Support 3GPP R8 DC-HSDPA, HSPA+, HSDPA, HSUPA and WCDMA DC-HSDPA: Max 42Mbps (DL) HSUPA: Max 5.76Mbps (UL) WCDMA: Max 384Kbps (DL), Max 384Kbps (UL) |
| LoRa Antenna |
2.5dBi gain / Vertical polarization / Omni-directional / SMA-J connector |
| 4G Antenna |
0-4dBi gain / Linear polarization / Omnidirectional / SMA-J connector |
| LED Indicator | Indicating network condition (online/ offline) |
| Grounding | Reserved 1 screw hole for GND |
| Power Consumption | 3.6W |
| Power Supply | DC 12V/2A |
| IP Rating | IP66 |
| UV Resistance | anti-aging (from rain/sun exposure): UL746C F1 |
| Enclosure Material | PC |
| Operating Temperature | -40 ℃ to +70 ℃ |
| Operating Humidity | 0 to 100 %RH (non-condensing) |
| Installation Method | Wall or pole mounting |
| Device Weight | 777g |
| Device Dimensions | 256mm * 160mm * 81mm |
| Certification | CE, FCC, RoHS |
Interface
| Part List | ||
|---|---|---|
| 1 | LoRa Gateway | x1 |
| 2 | LoRa Antenna | x1 |
| 3 | 4G Antenna | x1 |
| 4 | Allen Hex Key | x1 |
| 5 | Mounts | x4 |
| 6 | Power Adapter | x1 |
| 7 | Power Extension Cable (5M) | x1 |
| 8 | Ferrules / Aluminum piece | x 2 / 2 |
| 9 | M5 Self-drilling Screws | x8 |
