Raspberry Pi Motor Board v1.0

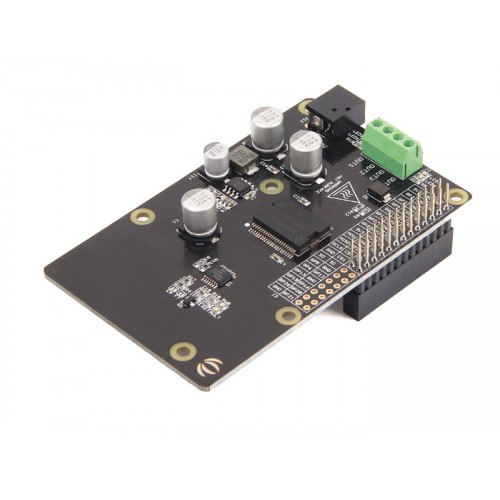

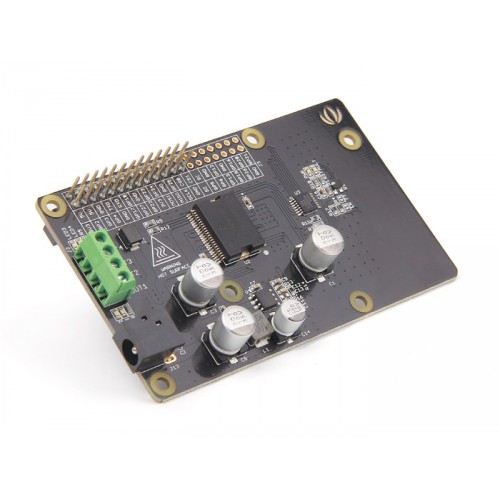

Raspberry Pi Motor Driver Board v1.0 is based on the Freescale MC33932 dual H-Bridge Power IC, which can control inductive loads with currents up to 5.0A peak per single bridge. It lets you drive two DC motors with your Raspberry Pi B/B+/A+ and Pi 2 Model B, controlling the speed and direction of each one independently.

Raspberry Pi Motor Driver Board v1.0 support a very wide range of input voltage from 6V~28V. otherwise ,the on board DC/DC converter support a very wide range of input voltage, and can provide a 5V power supply for the Raspberry Pi with 1000mA maximum current. So, you just need one power supply to drive the motors and power up the Raspberry Pi.

Features:

• Operating Voltage: 6V ~ 28V

• DC/DC output: 5V 1000mA @"5V"pin

• Output Current(For Each Channel ): 2A (continuous operation) / 5A(peak)

• Output Duty Range: 0%~100%

• Output short-circuit protection (short to VPWR or GND)

• Over-current limiting (regulation) via internal constant-off-time PWM

• Temperature dependant current limit threshold reduction

• Raspberry Pi compatible

Specification:

• Compatible: Raspberry Pi ; Other main board via jumpers;

• Power interface: DC Jack;

• Dimensions: 91.20 * 56.15mm;

• Operating Voltage: 6V ~ 28V
