Grove - Capacitive Touch Slider Sensor (CY8C4014LQI)

Product Code: Seeed 101020552

Brand: Seeedstudio

0 reviews | Write a review

Call Us

GST inclusive

Qty:

Availability: Backorder

Add to Wish List

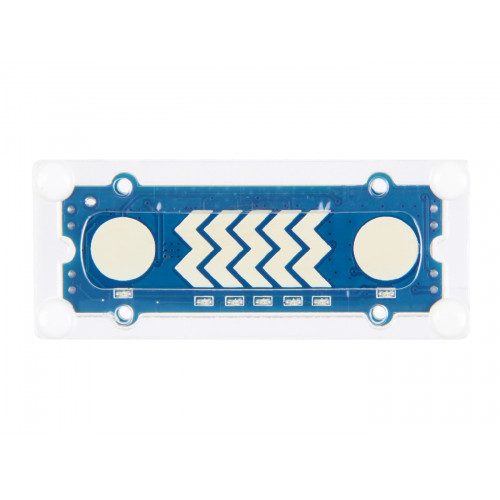

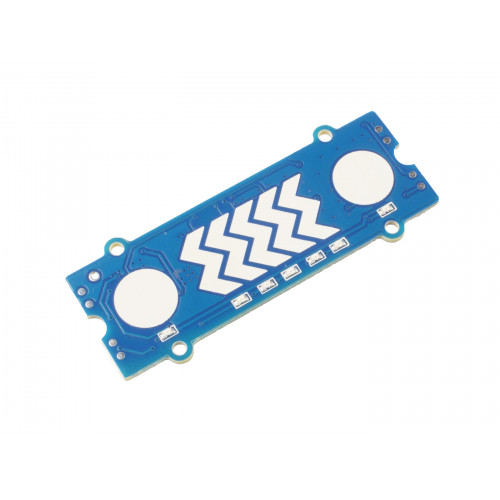

The Grove - Capacitive Touch Slider Sensor (CY8C4014LQI) is a multifunctional touch sensor. You can touch the two buttons or slide on the 5-segment slider, each touch pad has a corresponding LED to indicate the touch status. Also we provide a default high interrupt pin, once you touch the button or slide the slider, it will comes to low.

It will be a lot fun to use this module as a game controler or apply it to other touch applications.

Features

32-bit MCU Subsystem
16-MHz ARM Cortex-M0 CPU
Up to 16KB of flash with Read Accelerator
Up to 2KB of SRAM
Automatic hardware tuning (SmartSense™) over a sensor range of 5 pF to 45 pF
I2C interface

Typical Appilcations

Game controller
Touch applications

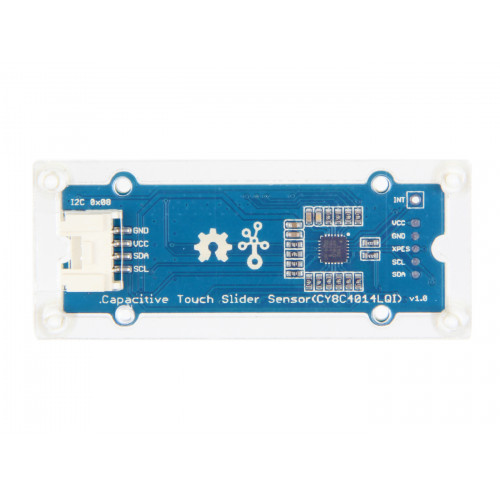

Pin Out

Technical Details

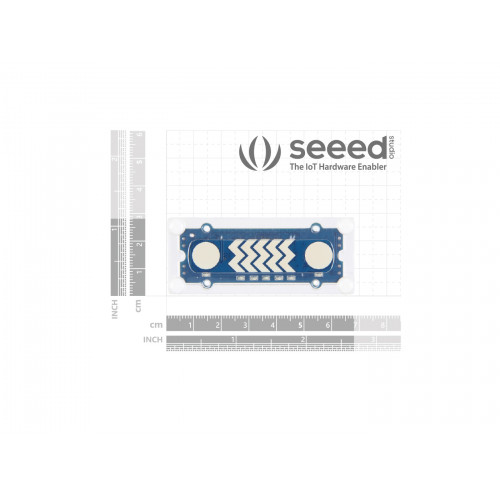

Dimensions	20mm x 60mm x 6mm
Battery	Exclude
Operating Voltage	3.3V / 5V
Operating Ambient Temperature	-40°C to +85°C
Operating Junction Temperature	-40°C to +100°C
Interface	I2C
Default I2C Address	0x08

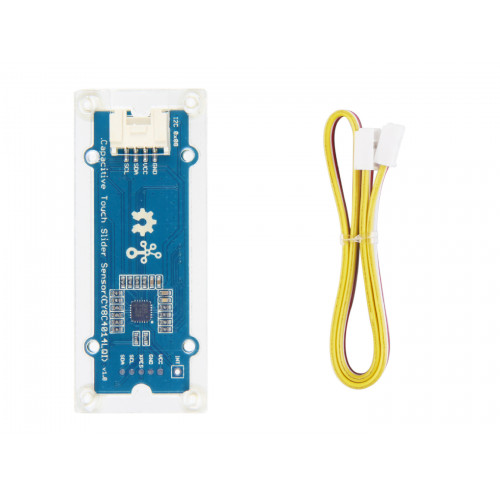

Part List

Grove - Capacitive Touch Slide Sensor(CY8C4014LQI)	1
Grove Cable	1
