STM32F746G-DISCO, 32F746GDISCOVERY

32F746GDISCOVERY, Discovery kit with STM32F746NG MCU.

The STM32F7 discovery kit allows users to develop and share applications with the STM32F7 Series microcontollers based on ARM® Cortex®-M7 core.

The discovery kit enables a wide diversity of applications taking benefit from audio, multi-sensor support, graphics, security, video and high-speed connectivity features.

The Arduino connectivity support provides unlimited expansion capabilities with a large choice of specialized add-on boards.

Key Features

• STM32F746NGH6 microcontroller featuring 1 Mbytes of Flash memory and 340 Kbytes of RAM, in BGA216 package
• On-board ST-LINK/V2-1 supporting USB re-enumeration capability
• Mbed-enabled (mbed.org)
• USB functions: virtual COM port, mass storage, debug port
• 4.3-inch 480x272 color LCD-TFT with capacitive touch screen
• Camera connector
• SAI audio codec
• Audio line in and line out jack
• Stereo speaker outputs
• Two ST MEMS microphones
• SPDIF RCA input connector
• Two pushbuttons (user and reset)
• 128-Mbit Quad-SPI Flash memory
• 128-Mbit SDRAM (64 Mbits accessible)
• Connector for microSD card
• RF-EEPROM daughterboard connector
• USB OTG HS with Micro-AB connectors
• USB OTG FS with Micro-AB connectors
• Ethernet connector compliant with IEEE-802.3-2002
• Five power supply options:
  • ST LINK/V2-1
  • USB FS connector
  • USB HS connector
  • VIN from Arduino connector
  • External 5 V from connector
• Power supply output for external applications: 3.3 V or 5 V
• Arduino Uno V3 connectors
• Comprehensive free software including a variety of examples, part of STM32Cube package
• Supported by a wide choice of integrated development environments

STM32F746G-DISCO: TOP LAYOUT

STM32F746G-DISCO: BOTTOM LAYOUT

Dimensions

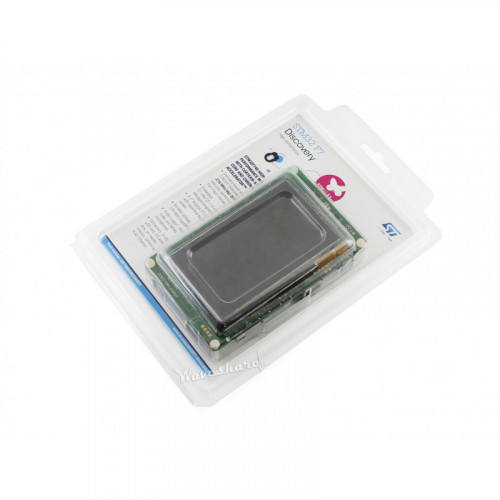

PACKAGE CONTENT

1. STM32F746G-DISCO × 1

Development Resources

Wiki : www.waveshare.com/wiki/STM32F746G-DISCO
