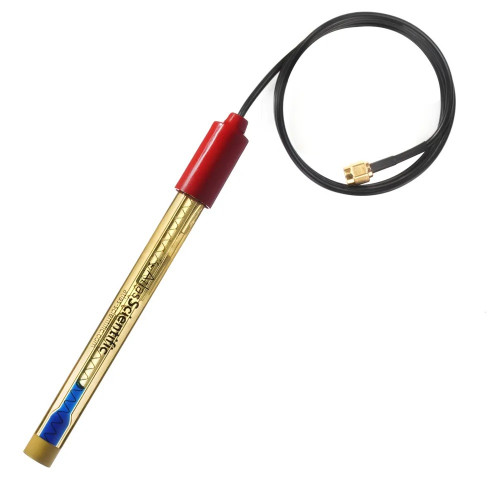

Research Grade pH Probe
Experience unparalleled accuracy in pH measurement with our cutting-edge Research-Grade pH Probe. The probe’s exterior, made from chemically resistant materials like Ultem and Teflon, ensures long-term durability even in harsh environments. The flat glass membrane at the tip, a significant deviation from traditional bulb designs, provides enhanced resistance to breakage and superior sensitivity for detecting minute pH fluctuations.

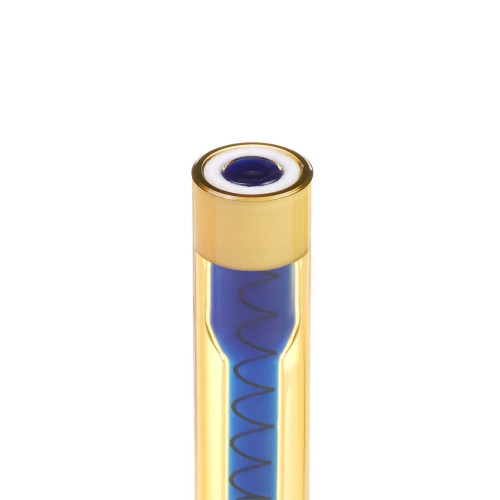

Internally, the probe stands out with its vanadium II-filled glass tube, which acts as an effective hydrogen amplifier, minimizing noise from highly acidic substances. The coiled silver wire inside increases the probe’s silver content, offering precise measurements in low ionic strength solutions. This double junction probe features a substantial 8mm Teflon junction and a unique granular silver chloride power source, ensuring consistent, high-energy readings and longevity in extreme pH environments. Designed for researchers demanding accuracy and resilience, our probe represents a technological leap in pH measurement tools.
| Double junction | |
| silver / silver chloride | |
| Reads | pH |
| Range | -1.6 − 15.6 |
| Resolution | +/- 0.001 |
| Accuracy | +/- 0.002 |
| Response time | 95% in 1.9s |
| Temperature range °C | -5 − 99 °C |
| Max pressure | 120 PSI |
| Max depth | 85m (280′) |

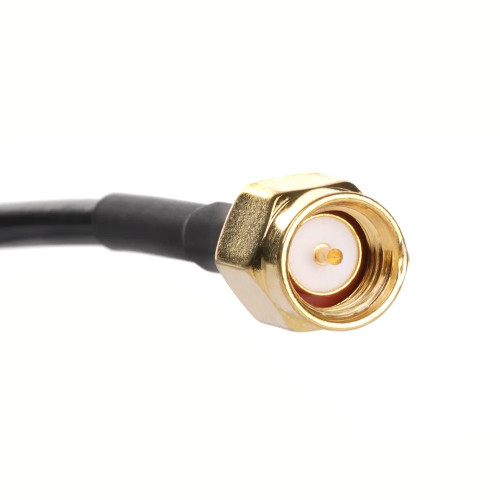

| Connector | Male SMA / Male BNC (optional) |

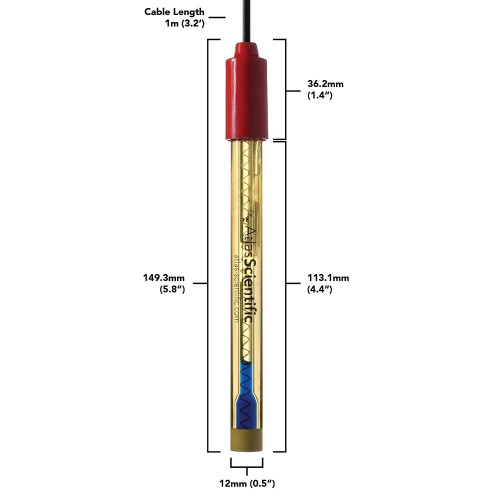

| Cable length | 1 meter |
| Internal temperature sensor | No |
| Time before recalibration | ~1.5 Year |
| Life expectancy | ~3 − 5 Years + |
Documents
Research Grade pH Probe Datasheet- How to measure the pH of soil
How to properly cut your probe cable- Connecting probes into a pipe
RoHS Certificate- CE Certificate
