Relay2 click

Product Code: MIKROE-1899

Relay2 click
Relay2 click
Relay2 click
Relay2 click

₹2,729.00
GST inclusive



Qty:

Availability: Backorder


Add to Wish List



Description

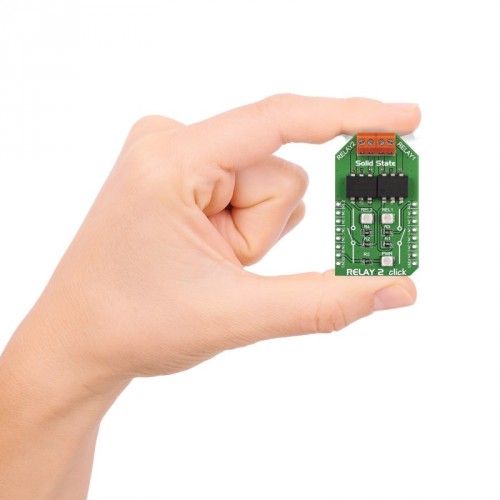

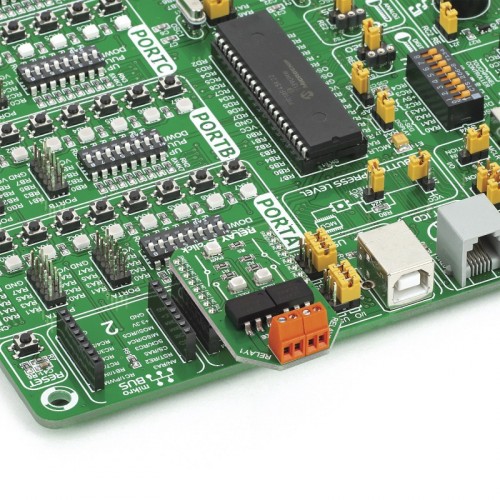

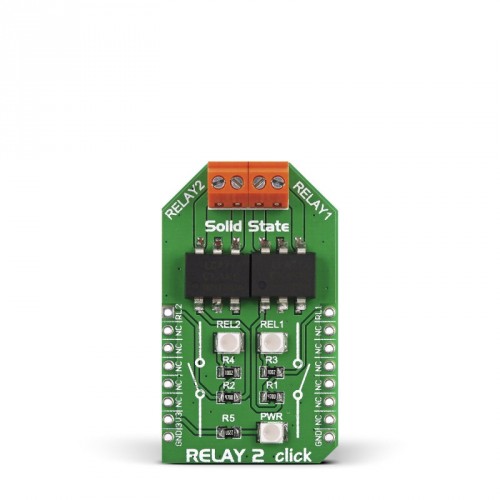

Relay 2 click carries two LCA717 single-pole, OptoMOS® solid state relays and two screw terminals for connecting the wiring. These relays have a load current of 2A, low maximum on-resistance of just 0.15 Ohms, and a blocking Voltage of 30V. The LCA717 have optically coupled outputs that use the patented OptoMOS technology. Solid state relays enable fast, silent and bounce-free switching. Each relay is coupled with an onboard signal LED. The board is designed to use a 3.3V power supply only.

Specification

Type Relay
Applications Turn things On or Off, like lights, motors, and similar devices that don’t exceed the specified voltage/current levels
On-board modules Two LCA717 single-pole, OptoMOS® solid state relays
Key Features Maximum voltage 30V; Max current 2A. Status indicator LEDs
Key Benefits Fast, silent and bounce-free switching. High reliability
Interface GPIO
Input Voltage 3.3V

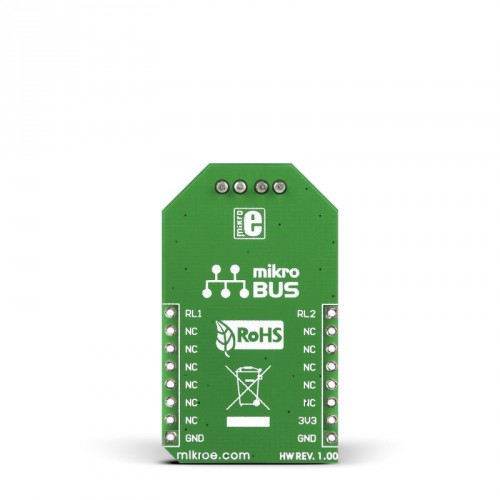

Compatibility mikroBUS
Click board size M (42.9 x 25.4 mm)

Downloads

 Relay 2 click Examples

 Relay 2 click User Manual
