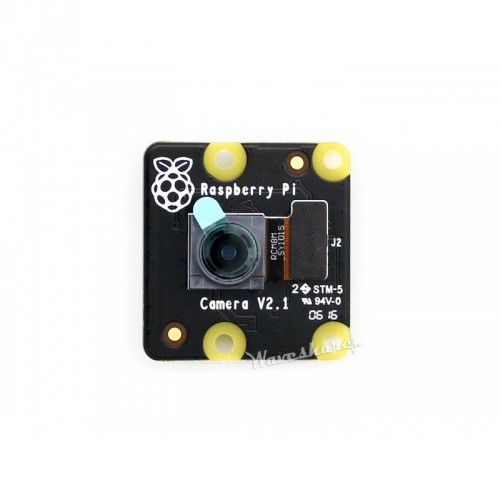

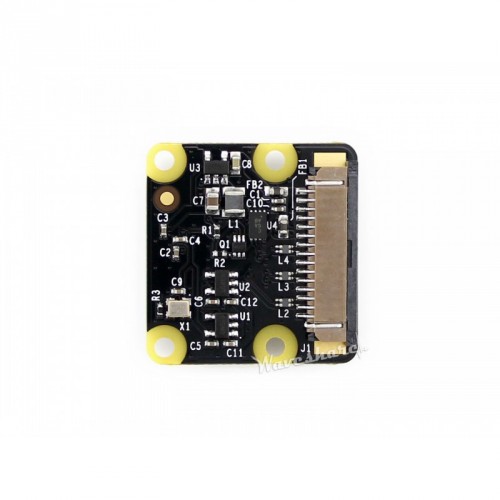

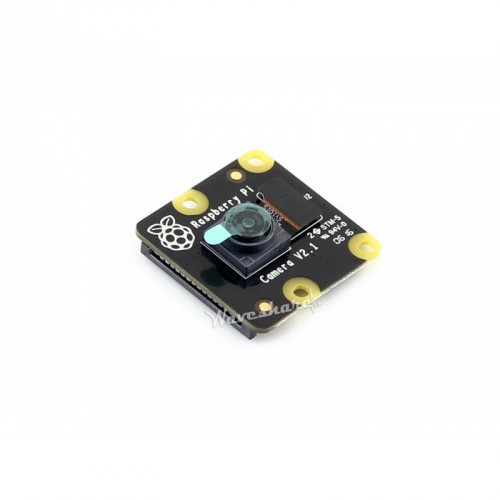

RPi NoIR Camera V2

Features

• Official Raspberry Pi Camera, supports all revisions of the Pi
• Sony IMX219 8-megapixel sensor
• Camera specifications
  • CCD size : 1/4inch
  • Aperture (F) : 2.0
  • Focal Length : 3.04mm
  • Field of View : 73.8 degree
• 3280 × 2464 still picture resolution
• Support 1080p30, 720p60 and 640x480p90 video record
• No infrared filter, supports night vision
• Dimension: 25mm × 24mm × 9mm

Note: Infrared LED is required to provide Infrared lighting for night vision.

Note: to use the camera with Raspberry Zero v1.3, you need to buy a specific cable: Raspberry Pi Zero v1.3 Camera Cable

Development Resources

Wiki : www.waveshare.com/wiki/RPi_NoIR_Camera_V2

PACKAGE CONTENT

The included FFC is 15cm, if you need a longer cable, please consider: RPi Camera Cable 60cm

1. RPi NoIR Camera V2 x1
2. 15-pin FFC (opposite sides contact) x1
3. Blue gel filter x1
