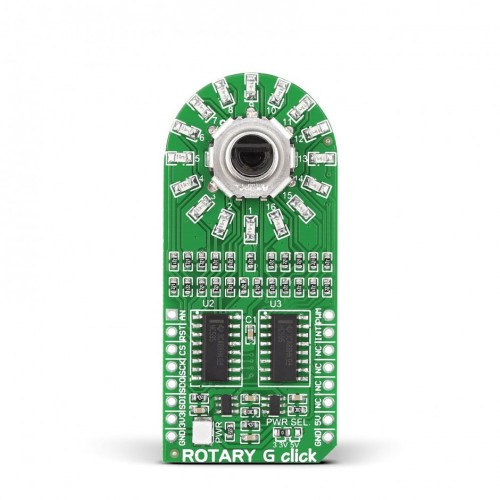

ROTARY G click
Product Code: MIKROE-1822
Rotary click carries a 15-pulse incremental rotary encoder with detents, surrounded by a ring of 16 green LEDs. It’s a perfect solution for adding a precision input knob to your design. The encoder outputs A and B signals (out of phase to each other); the knob also acts as a push-button which sends an interrupt to the target board MCU. The LED ring is controlled through SPI lines (CS, SCK, MISO, MOSI). Rotary click can be used with either a 3.3V or 5V power supply.
Specification
| Type | Rotary encoder |
| Applications | Wheel controllers that spin infinitely are useful for controlling audio/video equipment and similar appliances |
| On-board modules | EC12D 15-pulse rotary encoder |
| Key Features | 30 indents (dividing the rotation into discrete increments) |
| Key Benefits | Supported in all mikroElektronika compilers |
| Interface | SPI,PWM,Analog,GPIO |
| Input Voltage | 3.3V or 5V |
| Compatibility | mikroBUS |
| Click board size | L (57.15 x 25.4 mm) |
