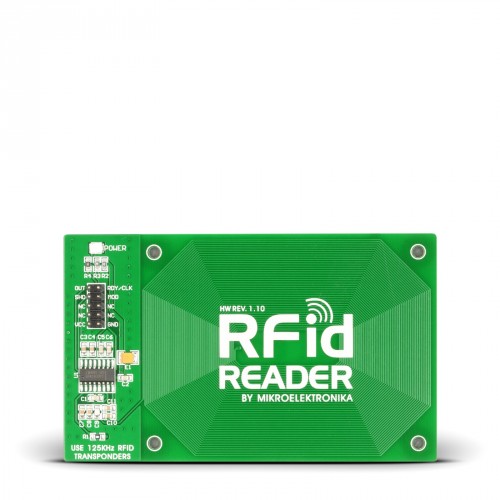

RFid Reader Board
Product Code: MIKROE-262
RFid Reader Board is a 125KHz RF transmitter and reciever, featuring EM4095 controller chip. The reader has three main functions: energizing, demodulation and decoding. Reader can be connected to microcontrollers or PC for encoding the data read from RFid tags. Signal is Manchester-coded.
Specification
| Type | RFid/NFC |
| Applications | Board can be used to read code from 125kHz RFid tags or identification cards |
| On-board modules | EM4095 controller chip |
| Key Features | 125kHz transmitter and reciever. Communicates with a microcontroller via simple interface. Sleep mode consumption only 1µA |
| Key Benefits | Signal is coded using standard Manchester coding. Easy connectivity using standard IDC10 connector |
| Interface | GPIO |
| Input Voltage | 5V |
| Compatibility | IDC10 |
