Pi-EzConnect Terminal Block Breakout HAT

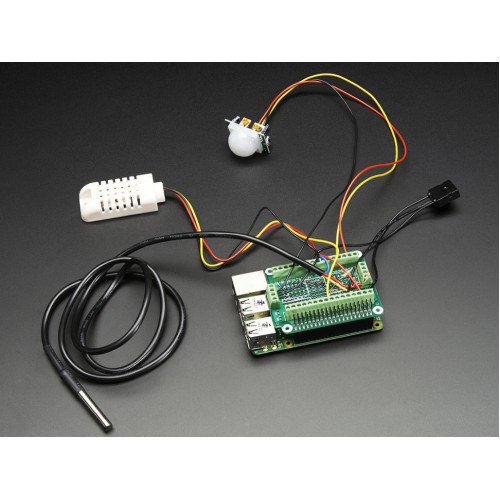

With the Pi-EzConnect you can connect all sorts of electronics to a single Raspberry Pi  with no soldering or breadboarding! This HAT has screw-terminals for each pin on the Pi Header

Key features:

• Solderless or soldered connections for all GPIO’s on a Raspberry Pi
• Mini proto area for adding components
• Add standard male or female headers for breadboard like functionality
• Power (both 5V and 3.3V) as well as ground connections available

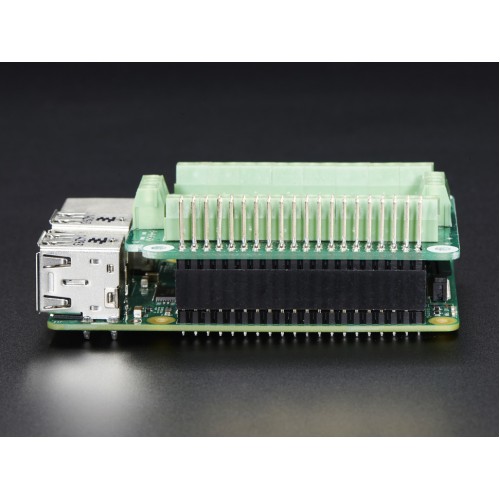

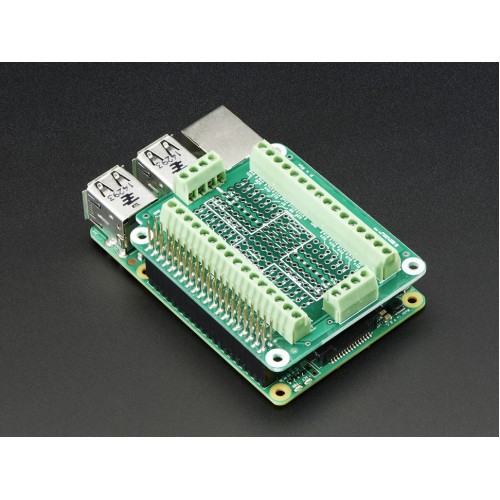

• Compact footprint – fits easily on top of a Raspberry Pi

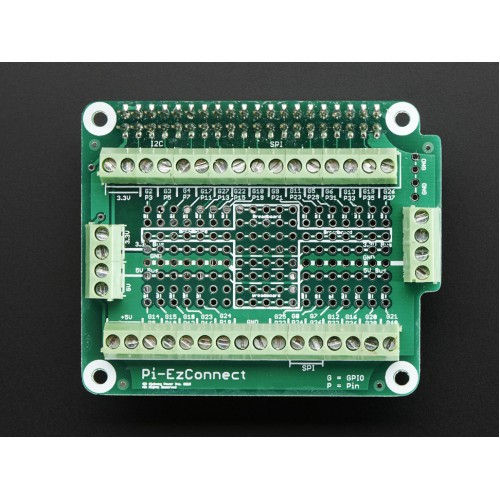

• Fully documented pins – easily connect to pin numbers or GPIO number without referring to external charts

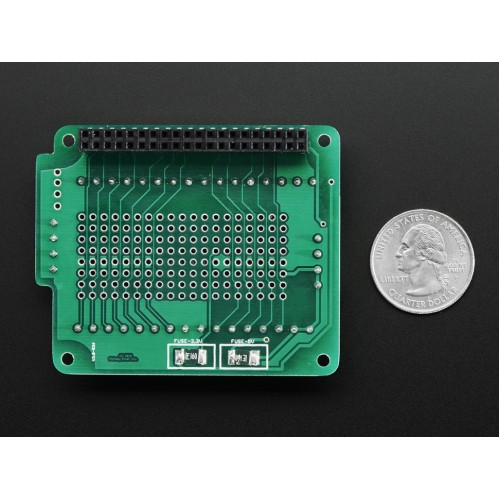

• Protection: Resettable 8V, 1.6A fuse for 3.3V and 5V power
• Header connections: Can use 0.1" (2.54mm) spaced headers, male or female
• Standoff connections: Matches Raspberry Pi model A+, B+, and Pi 2

Much more information available on the datasheet and on the Alchemy Power website!

Note: This is compatible with the Raspberry Pi 3 Model B, Pi 2 Model B, Model B+, and Model A+  Not for use with '2x13' Raspberry Pi models such as the Pi 1 Model B or A.

Technical Details:

Product Dimensions: 68.8mm x 56.6mm x 23.3mm / 2.7" x 2.2" x 0.9"

• Datasheet
