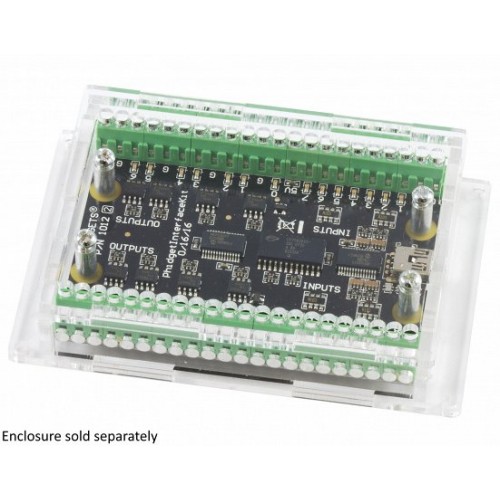

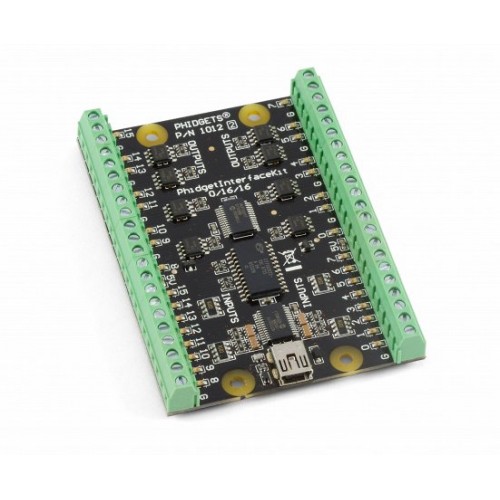

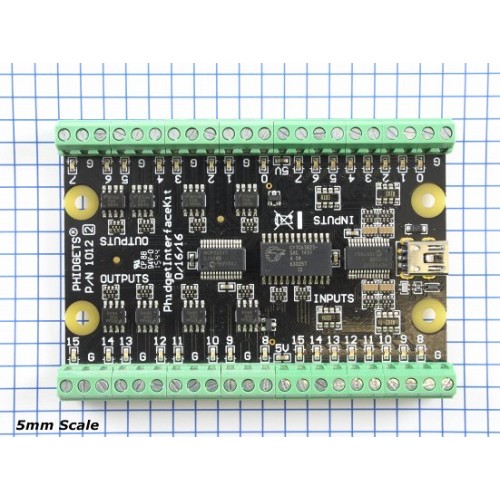

PhidgetInterfaceKit 0/16/16
Product Code: Phidgets 1012_2B
Description
Use it to check the state of switches and push buttons, and/or to switch relays, solenoids, and LEDs.
Digital Inputs
The Digital Inputs are activated by an external voltage source, triggering on a wide voltage range: 4 to 30VDC. They provide built-in filtering, to eliminate false triggering from electrical noise. They can be used to convey the state of on/off devices, such as push buttons, limit switches, relays.
Digital Outputs
The Open Collector Digital Outputs can be used to directly control substantial devices, switching up to 30VDC at up to 2 Amps. The Output acts as a switch to ground, so the circuit you're switching will need an external power supply. Each output is protected from transient voltages typical when switching inductive devices - relays, solenoids, motors. The Outputs can be used to directly control devices requiring substantial power such as incandescent lights, high power LEDs, relays, solenoids, motors.
Product Specifications
| Board | |
|---|---|
| Controlled By | USB (Mini-USB) |
| API Object Name | DigitalInput, DigitalOutput |
| USB Voltage Min | 4.6 V DC |
| USB Voltage Max | 5.5 V DC |
| Current Consumption Min | 14 mA |
| Current Consumption Max | 500 mA |
| Available External Current | 394 mA |
| Recommended Wire Size | 16 - 26 AWG |
| USB Speed | Low Speed |
| Operating Temperature Min | 0 °C |
| Operating Temperature Max | 70 °C |
| Digital Inputs | |
| Number of Digital Inputs | 16 |
| Digital Input Impedance | 10 kΩ |
| Low Voltage Max (False) | 900 mV DC |
| High Voltage Min (True) | 4.2 V DC |
| Low Voltage Trigger Length Min | 16 ms |
| High Voltage Trigger Length Min | 4 ms |
| Digital Input Voltage Max | ± 30 V DC |
| Digital Input Update Rate | 125 samples/s |
| Relay Properties | |
| Number of Relays | 16 |
| Series Resistance | 200 mΩ |
| Open Collector Voltage Max | 30 V DC |
| Digital Output Current Sinking Max | (per channel) 2 A |
