PhidgetBridge 4-Input
Product Code: Phidgets 1046_1
Description

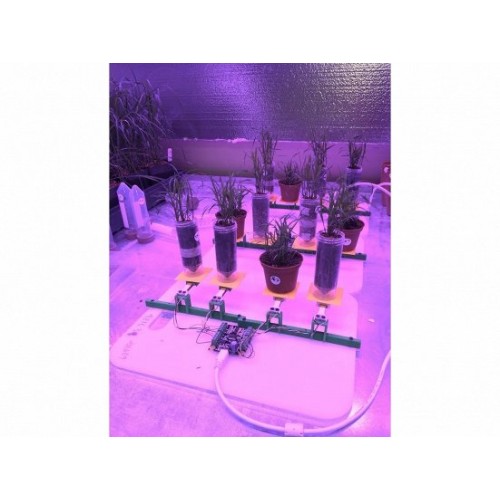

This board is needed to measure the output from a load cell. You can connect up to four load cells or strain gauges.

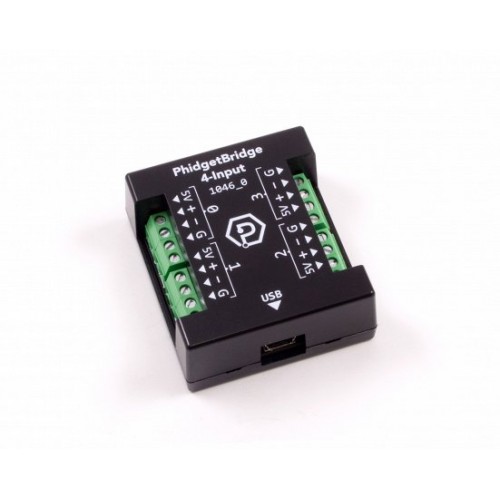

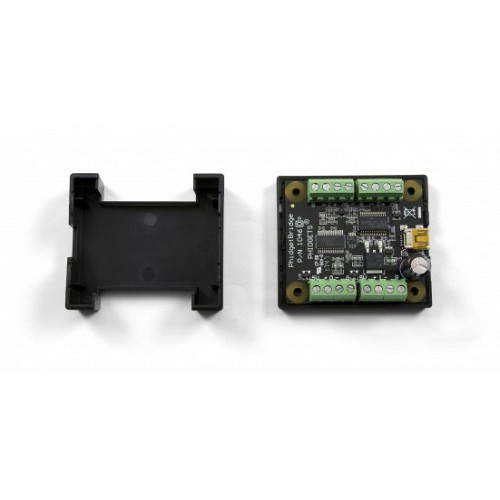

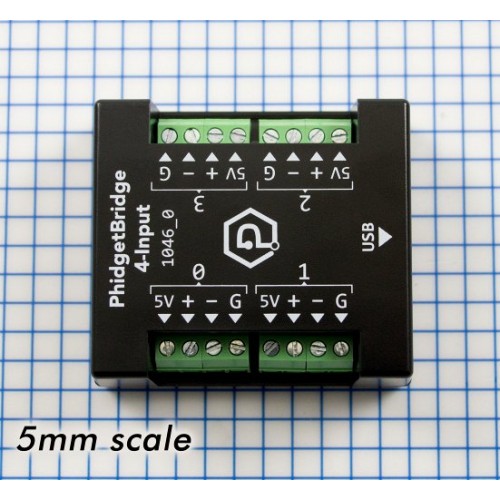

Note: The 1046_0B is identical to the 1046_0, except that it comes pre-assembled in a plastic shell enclosure and you have the option of which length of USB cable you want to include.
The PhidgetBridge lets you connect up to 4 un-amplified Wheatstone bridges, such as:
- Strain gauges
- Compression load cells
- Pressure sensors/Barometers
- Piezoresistive accelerometers
- Magnetoresistive sensors (Compasses)
The data rate and gain values can be configured in software.
Product Specifications
| Board | |
|---|---|
| Controlled By | USB (Mini-USB) |
| API Object Name | Bridge |
| Number of Bridge Inputs | 4 |
| Bridge Data Rate Min | * 8 ms |
| Bridge Data Rate Max | 1000 ms |
| Bridge Input Current Max | ± 3 nA |
| Differential Voltage Resolution | 24 bit |
| Electrical Properties | |
| USB Voltage Min | 4.5 V DC |
| USB Voltage Max | 5.3 V DC |
| USB Speed | Full Speed |
| Current Consumption Min | 35 mA |
| Current Consumption Max | 500 mA |
| Available External Current | 465 mA |
| Input Voltage Limit Min | Ground + 0.25V DC |
| Input Voltage Limit Max | 5V Supply - 0.25V DC |
| Physical Properties | |
| Recommended Wire Size | 16 - 26 AWG |
| Operating Temperature Min | 0 °C |
| Operating Temperature Max | 70 °C |
Documents
Library & Driver Downloads
