Asset Tracker Kit v2

Locate your stuff! The Asset Tracker Kit contains all of the hardware you need to build a GSM + GPS location tracker for your most prized possessions. In addition to a GPS Shield and Electron, the Asset Tracker Kit comes with a weatherproof enclosure, so it'll keep your electronics safe from the dust, dirt, and moisture of the great outdoors. Keep your bicycle, boomerang, and backpack safe--satellite lock onto this bargain project kit today!

Our new Asset Tracker v2 shield has the following new features and improvements:
- Improved GPS performance
- Smaller enclosure for space-constrained tracking applications
- Expandable with Grove; Seeed's huge library of sensors and firmware libraries
- Satellite support for GPS, GLONASS, Galileo, BeiDou

All Particle Hardware is designed from the ground up to work with the Device Cloud. The Device Cloud is a powerful set of tools and infrastructure to build, connect, and manage your IoT fleet.


• Access to the Device Cloud includes:

• 3MB of cellular data per device/mo (additional data $0.40/MB for most countries)
• First 3 months of Device Cloud FREE ($2.99 per device/mo after)
• Device Cloud Features:

  - Device Management

  - Over the Air Firmware Updates

  - Fully Managed Connectivity

  - Developer Tools

  - Integrations

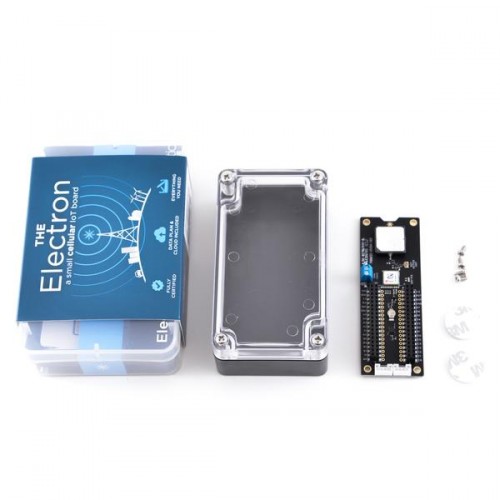

• Contents:

• Particle Electron PCB
• Weatherproof Enclosure
• Asset Tracker Shield PCB
• Particle SIM Card
• Li-Po battery (2000mAh)
• USB cable
• Breadboard
• Pinout reference card
• Components for a sample product

• Specs:

• STM32F205 ARM Cortex M3 microcontroller
• 1MB Flash, 128K RAM
• Cellular modem: u-blox SARA U-series (3G) or G-series (2G)
• 36 pins total: 28 GPIOs (D0-D13, A0-A13), plus TX/RX, 2 GNDs, VIN, VBAT, WKP, 3V3, RST
• Based on 72-channel u-blox M8 engine
• GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1I, Galileo E1B/C, SBAS L1 C/A: WAAS, EGNOS, MSAS, GAGAN
• Update rates: Single GNSS: up to 18 Hz, 2 Concurrent GNSS: up to 10 Hz
• Position accuracy of 2.5 meters>
• Sensitivity of -167dBm
• Acquisition times: Cold starts: 26s, Aided starts: 2s, Reacquisition: 1s
• Operating temperature of –40° C to 85° C
• On board ROM
• Anti spoofing and anti jamming technologies
• Two quick connect grove sensor ports
• Built-in 3 axis IMU
• On board ceramic GPS antenna with LNA and bandpass filter
• Ability to switch between on board antenna or external active antenna
• Board dimensions: 4.6" x 1.42" x 0.3" (0.5" including headers)

The Asset Tracker Kit comes with a Particle SIM card with service in more than 100 countries worldwide. The Electron is a GSM-only device, and does not support CDMA networks. Some US carriers are planning to sunset their 2G networks beginning in 2017, so we recommend the Electron 3G (Americas) for our customers in the US.

We offer two types of Electron 3G Kits—one for Americas/Australia (850/1900 MHz) and one for Europe/Asia/Africa (900/1800 MHz). Please be sure to check the full list of compatible countries for the location in which your product will be deployed.
