Particle Mesh 2G/3G Bundle

Description

The Particle Mesh 2G/3G Bundle is a great way to start your exploration of the latest Particle Mesh hardware and software. This cellular bundle provides the key hardware and supporting platform to build mesh networking for your IoT project. Particle Mesh means you can create local networks that collect data, share messages, and connect to the Internet through a Particle gateway.

The bundle comes with three mesh-ready boards: the Boron, a powerful 2G/3G cellular board that can act as a gateway between your local Particle Mesh network and the internet or be used as a standalone device and two Xenons, the end points or network repeaters, so you can start to experiment with a multi-device Particle Mesh network.

The included Particle FeatherWing Tripler is perfect for any prototyping project. The Tripler provides space to add-on up to two FeatherWing accessories without any stacking header needs.

And, last but certainly not least, the bundle includes the Particle Debugger, which gives you the power of professional debugging at a fraction of the cost. Using this accessory, you’ll be able to program Particle mesh-ready hardware over common interfaces like JTAG and SWD, using open source tools like GDB. JTAG ribbon cable included.

All Particle hardware is designed from the ground up to work with the Device Cloud; a powerful set of tools and infrastructure to build, connect, and manage your IoT fleet. The Device Cloud for Particle Mesh is priced by network. All Particle customers get 3 free months of Device Cloud access for micro networks using a cellular gateway. A micro network is defined as a network with 10 total devices and a single gateway.

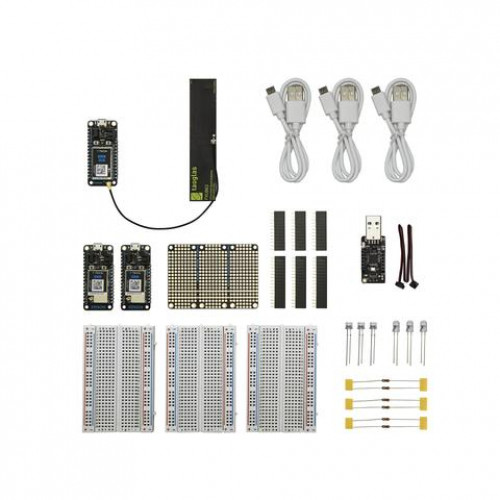

Contents

• 1 Boron 2G/3G Kit (On-board SIM, no card necessary)
• 2 Xenon Kits
• 1 Particle FeatherWing Tripler
• 1 Particle Debugger

Specs

• For full details on each individual product, please refer to the docs here: https://docs.particle.io/
• The Boron 2G/3G and Xenon meet the Feather specification in dimensions and pinout
• FCC and PTCRB certified
• All products in this bundle are RoHS compliant (lead-free)
