PROTO click
Product Code: MIKROE-1507

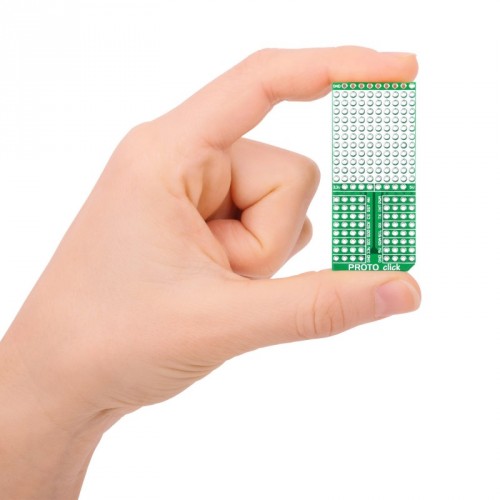

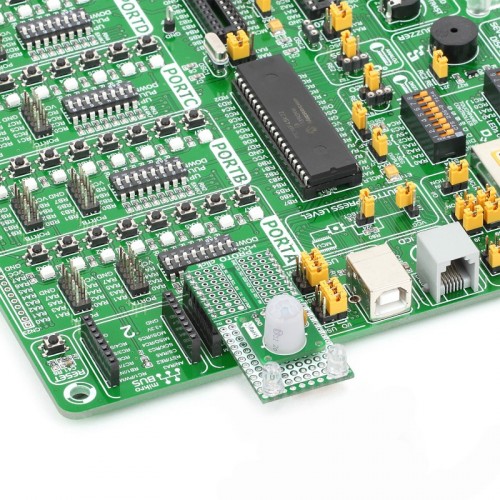

PROTO click is an accessory board in mikroBUS form factor. It features 10x11 prototyping area as well as additional power pads. It can be used to assemble custom electronics thus creating a custom click board. The board provides 3.3V and 5V power supply. PROTO click board is a cheap and effective solution for creating click board of your own design. Add sensors, drivers, passive components and make the click board which suits your project needs. Use it with all your favorite development boards which carry mikroBUS™ sockets.
Specification
| Type | Proto |
| Applications | Assemble custom electronics on provided prototyping area and create custom click board for your convenience |
| On-board modules | 10x11 prototyping area and additional power pads |
| Key Features | 10x11 general purpose prorotyping area with additional power pads |
| Key Benefits | Each mikroBUS line is available for further connecting via three additional pads |
| Compatibility | mikroBUS |
| Click board size | L (57.15 x 25.4 mm) |
Downloads
PROTO click is a prototyping board in mikroBUS™ form factor.
Features and usage notes

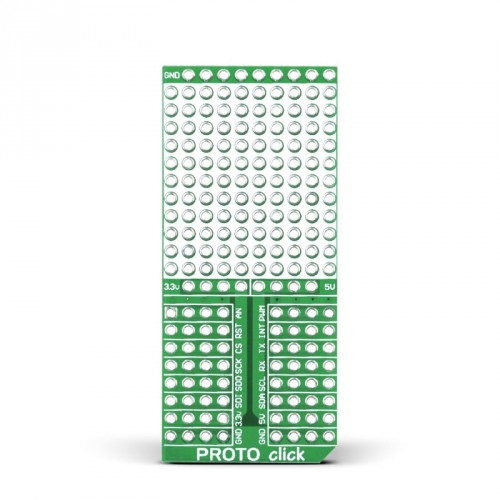

PROTO click features a 10x11 prototyping area as well as additional power pads. It can be used to assemble custom electronics. The board has standard mikroBUS™ I2C (SDA, SCL), SPI (MISO, MOSI, SCK, CS), UART (TX, RX), PWM, INT, AN and RST lines from the target board microcontroller. The board provides both 3.3V and 5V power supply connections.
