PIC-Ready2 Board
Product Code: MIKROE-414
Description

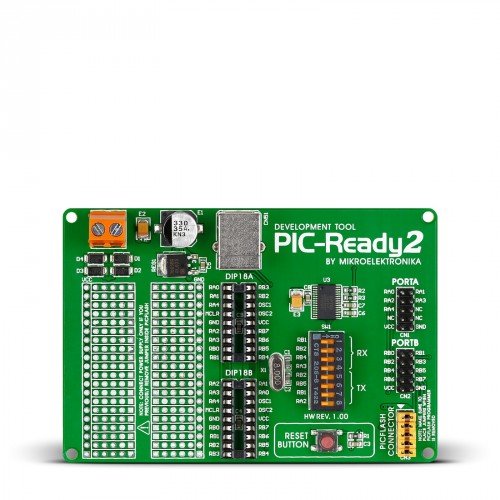

PIC-Ready2 board is the best solution for fast and simple development of 18-pin PIC microcontroller applications.
Highlights. Board features a USB to UART interface based on FT232R. There are also IDC10 connectors linked to the microcontroller pins provided on the board. They enable many peripheral modules to be connected to the board, so you can quickly assemble functional working environment that perfectly suits your needs.
Programming. Board can be programmed and debugged using the external mikroProg for PIC, dsPIC and PIC32 programmer/debugger.
Compilers. PIC-Ready2 is fully supported by mikroC, mikroBasic and mikroPascal compilers for PIC. Compilers come with dozens of examples that demostrate every feature of the board.
Specification
| Applications | PIC-Ready2 Board is the best solution for fast and simple development of 18-pin PIC microcontroller applications |
| Architecture | PIC (8-bit) |
| On-board modules | USB-UART module |
| Programming | Via mikroProg for PIC, dsPIC and PIC32 connector |
| Key Features | On-board USB to serial UART interface FT232R can be easily connected to a PC |
| Expandability | 2 x IDC10 male headers |
| Input Voltage | 8-16V DC or AC (via power screw terminals) |
