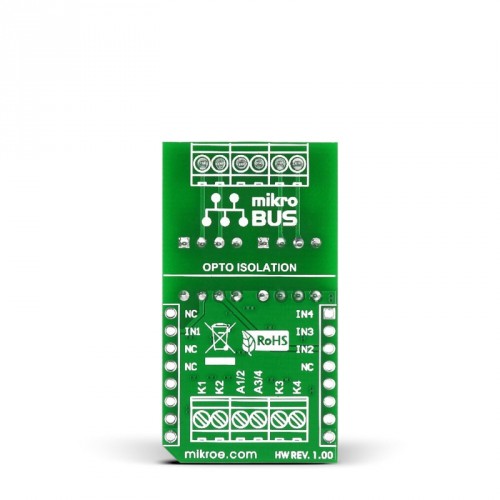

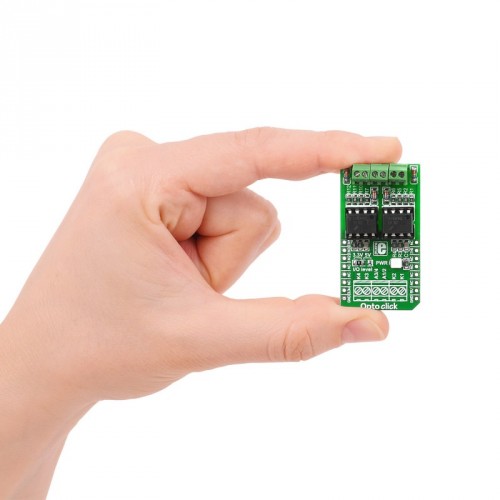

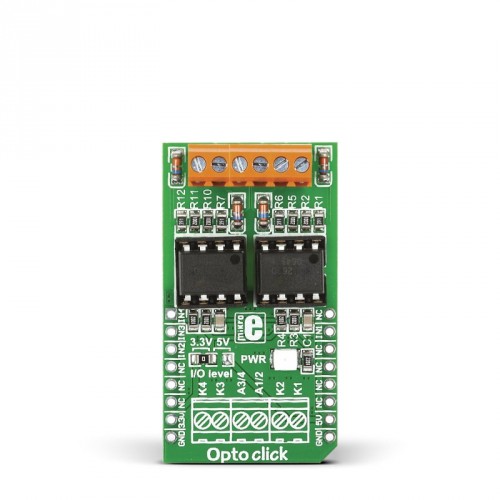

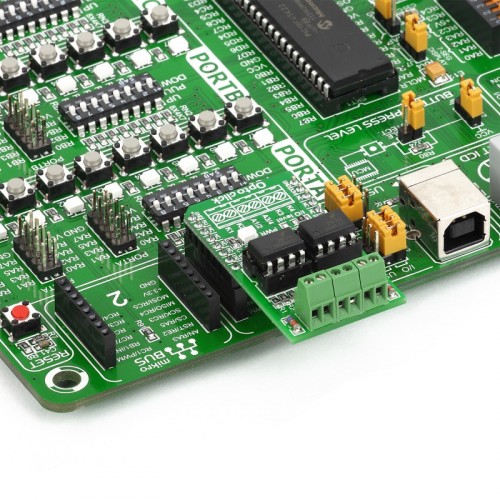

OPTO Click is an accessory board in mikroBUS form factor. It features two VO2630 dual channel, high speed optocoupler modules. They enable high speed (10 MBit/s) data transfer between it’s input and output with galvanic isolation. Optocouplers are connected to four lines (INT, CS, RST and AN) on mikroBUS™ socket. Board features six screw terminals for easier connections and a LED indicator of power supply. SMD jumper is available for selecting whether board will be operating on 3.3V or 5V power supply.
Type | Optocoupler |
Applications | OPTO Click is perfect for PLC and ATE I/O isolation, switching power supplies, computer and microprocessor peripheral interface and more |
On-board modules | VO2630 dual channel, high speed optocoupler |
Key Features | High speed – 10 MBit/s. |
Key Benefits | Optocouplers are easily replaceable because of DIP8 sockets. |
Interface | GPIO |
Input Voltage | 3.3V or 5V |
Compatibility | mikroBUS |
Click board size | L (57.15 x 25.4 mm) |
