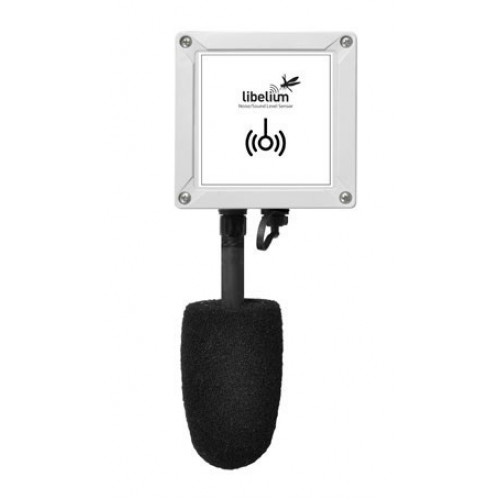

Noise / Sound Level Sensor Probe

Specifations of the Noise Level Sensor probe

Target parameter: LeqA

Microphone sensitivity: 12.7 mV / Pa

Range of the sensor: 50 dBA to 100 dBA

Accuracy: ±0.5 dBA (at 1 kHz)

Frequency range: 20 Hz – 20 kHz

Omni-directional microphone

A-weighting measure

Sound pressure level measurement (no weighting filter)

FAST mode (125 ms) and SLOW mode (1 second), software configurable

Specifications of the enclosure

Material: polycarbonate

Sealing: polyurethane

Cover screws: stainless steel

Ingress protection: IP65

Impact resistance: IK08

Rated insulation voltage AC: 690 V

Rated insulation voltage DC: 1000 V

Heavy metals-free

Weatherproof: true - nach UL 746 C

Ambient temperature (min.): -10 °C

Ambient temperature (max.): 50 °C
