Description :

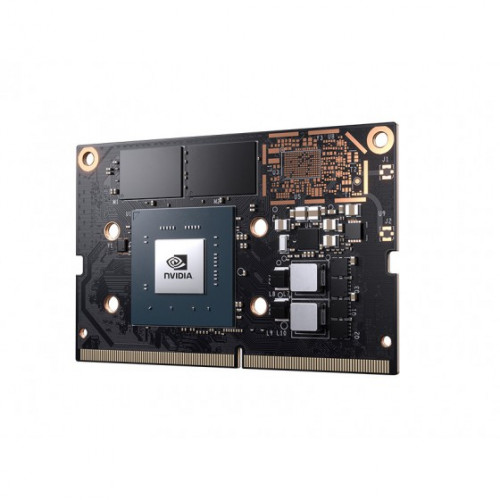

NVIDIA Jetson Nano Module (B01), Production-Ready AI System On Module (SOM), With 16GB EMMC
Jetson Nano Module Small, Powerful, AI
Bringing The Power Of Modern AI To Edge Computing And IoT Applications
NVIDIA Jetson Nano enables the development of millions of new small, low-power AI systems. It opens new worlds of embedded IoT applications, including entry-level Network Video Recorders (NVRs), home robots, and intelligent gateways with full analytics capabilities.
A NEW DIMENSION IN AI : At just 70 x 45 mm, the Jetson Nano module is the smallest Jetson device. This production-ready System on Module (SOM) delivers big when it comes to deploying AI to devices at the edge across multiple industries—from smart cities to robotics.
BIG COMPUTE PERFORMANCE : Jetson Nano delivers 472 GFLOPs for running modern AI algorithms fast. It runs multiple neural networks in parallel and processes several high-resolution sensors simultaneously, making it ideal for applications like entry-level Network Video Recorders (NVRs), home robots, and intelligent gateways with full analytics capabilities.
SMALL POWER DEMANDS : Jetson Nano frees you to innovate at the edge. Experience powerful and efficient AI, computer vision, and high-performance computing at just 5 to 10 watts.☑ Integrates 16 GB eMMC storage, industrial grade, more stable
☑ Compatible with Jetson Nano Developer Kit (B01) and JETSON-IO-BASE-A carrier board
Specifications :
GPU | NVIDIA Maxwell™ architecture with 128 NVIDIA CUDA® cores 0.5 TFLOPs (FP16) |
---|---|
CPU | Quad-core ARM® Cortex®-A57 MPCore processor |
MEMORY | 4 GB 64-bit LPDDR4 1600MHz - 25.6 GB/s |
STORAGE | 16 GB eMMC 5.1 Flash |
VIDEO ENCODER | 4Kp30 | 4x 1080p30 | 9x 720p30 (H.264/H.265) |
VIDEO DECODER | 4Kp60 | 2x 4Kp30 | 8x 1080p30 | 18x 720p30 (H.264/H.265) |
CAMERA | 12 lanes (3x4 or 4x2) MIPI CSI-2 D-PHY 1.1 (18 Gbps) |
CONNECTIVITY | 10/100/1000 BASE-T Ethernet |
DISPLAY | HDMI 2.0 or DP1.2 | eDP 1.4 | DSI (1 x2) 2 simultaneous |
UPHY | 1 x1/2/4 PCIE, 1x USB 3.0, 3x USB 2.0 |
I/O | 3x UART, 2x SPI, 2x I2S, 4x I2C, GPIOs |
SIZE | 69.6 mm x 45 mm |
MECHANICAL | 260-pin edge connector |
