UXP 16-Channel 12-Bit Analog to Digital Converter Expansion Board

Add Analog to Digital Conversion to any UXP Port

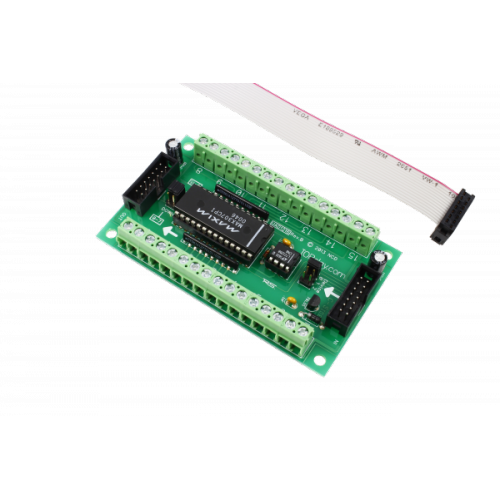

The UAD1216 is an 8-Bit/12-Bit 16-Channel Analog to Digital Converter Expansion Module designed to attach to any Fusion or ProXR UXP series controllers.  On-board Connectors shown above are used to connect a ground and an analog signal source from 0-5VDC.  Black connectors on each end are used to chain multiple UAD1216 Expansion modules to a single UXP port.

This design consists of a high-quality Dual Channel 12-Bit A/D converter connected to a dual 8-channel multiplexer.  To use this device, simply use our Base Station software, your Ultra controller will then communicate to this expansion module and respond with 8-Bit/12-Bit data.  Ultra series controllers are capable of reading a single channel at a time or all 16 channels at once.

Up to three UAD1216 expansion boards can connect to a single UXP port.  Fusion series controllers have two UXP Ports, allowing you to monitor up to 96 Analog Inputs.  ProXR UXP series controllers include a single UXP port.  This expansion includes a 6″ connection cable.  Power is supplied by the UXP Series Controller.

Please note: this is an expansion module and must be connected to a compatible board to work. This board will NOT work on it’s own.

Features

• Add 16 Channels of 8/12-Bit Analog to Digital Conversion (ADC)
• 0-5VDC Input Voltage Range
• Common Ground for all Analog Inputs
• Compatible with Fusion and ProXR UXP Series Controllers
• Chain Together up to 48 Analog Input Channels
• Expands in a Daisy Chain Configuration with Supplied Cables
• NOTICE: This device is an expansion module only and cannot be used alone
