MCP23017 16-Channel 8W 12V FET Solenoid Driver Valve Controller with I2C Interface

This 16-Channel power FET driver allows high-current loads to be controlled using I2C communications, making it compatible with all computing platforms, including Raspberry Pi, Arduino, Particle Photon, BeagleBone, and much more.  This device uses sixteen BUK98150-55A power FETs, allowing on/off cloud control of 16 channels. Control High-Power Relays, Solenoids, Valves, LEDs or incandescent lighting using the I2C data bus.  The BUK98150-55A is capable of switching up to 12VDC and 5.5 Amps of current (8 Watts of Heat Dissipation), making it an ideal choice for most low-voltage DC lighting applications.  The MCP23017 GPIO chip is used as a driver for this controller, making communications easy and expandable to up to 8 devices on a single I2C port.

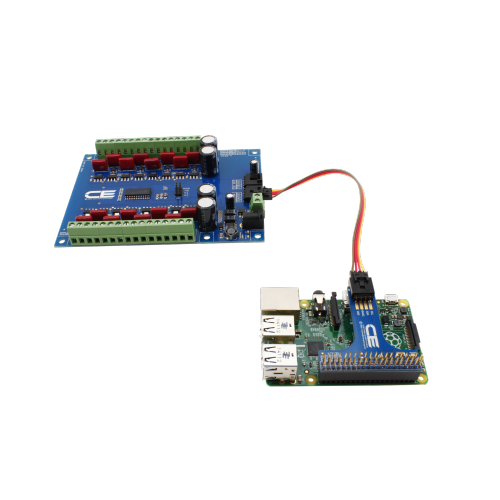

Take control of your DC lighting applications from any computing platform. Plug this device into a Particle Photon or Particle Electron for worldwide access using the Particle Cloud infrastructure. Plug this device into an Arduino for easy programming and quick development. Plug into a Linux using Raspberry Pi or BeagleBone for cost sensitive applications that require some computing power. We are always developing GitHub libraries for Java, Python, and Arduino to help get you started. Our development library makes it easy to control this device with minimal coding. I2C expansion port makes it easy to add sensors or more controllers to the I2C bus.

What is the NCD I2C Interface?

NCD is the creator of plug and play modular hardware using the NCD I2C Interface connector standard.  NCD I2C devices allow you to chain together several devices on the I2C bus, and communicate to each device individually at high speed (subject to the limitations of I2C).  The NCD I2C Interface uses a standard 4-Pin I2C Input and I2C Output connector.  NCD I2C devices communicate 5V I2C data and provides 5V DC power through this connector.  NCD I2C devices use standard I2C communications for all data transport, which is supported by nearly every microcontroller in production today.  The NCD I2C Interface is strictly a 5V standard, which is ideal for transport across longer cables.  NCD I2C devices always include a 6″ (152mm) 4-conductor I2C cable.  NCD I2C Mini Modules always include a 3″ (76mm) 4-conductor I2C cable.  Cables and connectors are available separately for designers who would like to include their own NCD I2C Interface into their designs.

Plug and Play Connectivity

NCD I2C devices will plug in to any available NCD I2C Output.  This includes just about everything we make in the NCD IoT Category, including all NCD IoT devices.  We also manufacture a wide range of I2C adapters that make it easy to plug NCD I2C Devices directly into most computing platforms.  The NCD I2C Interface adapters are available for Arduino, Banana Pi, BeagleBone, Bluz, C.H.I.P., ESP8266, Onion Omega, Particle Photon and Electron, PyCom, Raspberry Pi, 2, 3, and Zero, and Windows.  We are always working to add new platform support for NCD I2C devices.  NCD I2C Interface devices are compatible with just about everything in the microcontroller industry.

Unlimited I2C Expansion

Based on our plug-and-play I2C interface standard, all NCD I2C devices are equipped with a I2C output port, making it easy to expand to a wide variety of sensors, current monitors, relay controllers, PWM controllers, and much more!  We are always designing new expansions for our modular plug-and-play I2C framework.  We are dedicated to building a product line of interconnected devices to simplify all forms of automation.  Re-use or upgrade your hardware in seconds by selecting the modules that best fit your needs, and chaining them together using the included I2C expansion cables!

Powering NCD I2C Interface Devices

Some NCD I2C devices require a external power supply, others may be powered through the 4-Pin I2C bus connector at 5VDC, and other devices are jumper selectable between external and I2C bus power.  All I2C mini modules are powered through the 5V I2C bus connector, greatly simplifying connectivity.

Features

• 12V On/Off Power FET Controller with I2C Interface
• 16-Channel 12V Outputs Rated for Use with Inductive Loads
• Provides 12V On/Off Control of Solenoids, Valves and DC Motors
• Solid-State On/Off Control of 12V Incandescent or High-Power LED Lighting
• 16 N-Channel BUK98150-55A 12V 5.5A 8W Power Fets
• Designed for Resistive or Inductive Solid State DC Switching Applications
• I2C Expansion Port for Adding External Sensors or Controllers
• MCP23017 16-Channel I2C Interface
• Includes FREE I2C Expansion Cable
