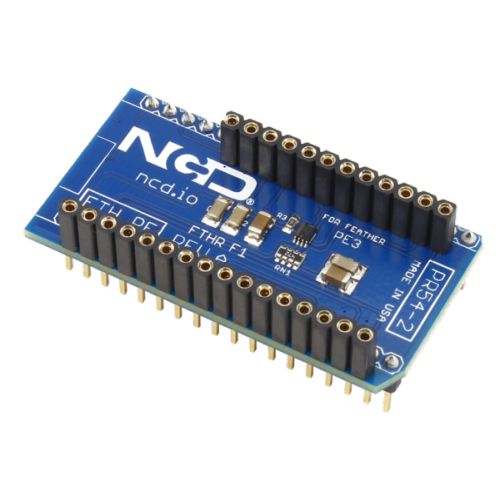

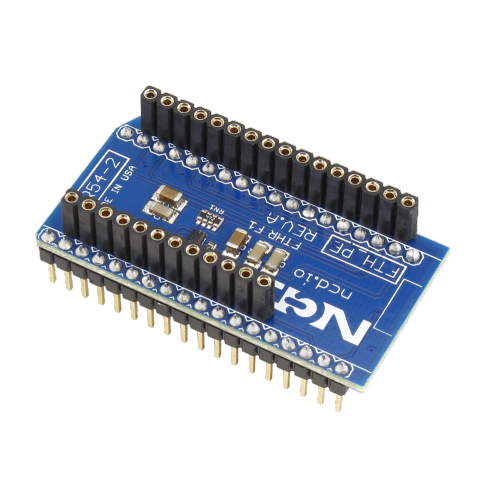

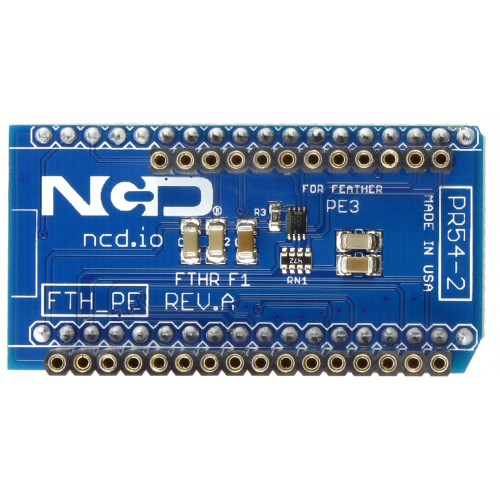

Feather To IoT Adapter For Particle and Feather Modules
This Feather To IoT Adapter For Particle and Feather Modules was designed to connect the Particle Argon, Boron, Xenon or Feather Modules to any of our Particle Electron IoT devices. If you have existing NCD IoT interface products and wants to use them with new Particle Argon, Boron, Xenon or Feather Modules then look no further. This Feather To IoT Adapter module is all you need to convert your existing product into new feather products.
This adapter includes a Level-Shifted I2C Communication Bus to the Particle Argon, Boron, Xenon or Feather Modules.
Connect sensors for light level monitoring, gas level detection, temperature and humidity monitoring, as well as many types of motion, acceleration, and direction sensors.

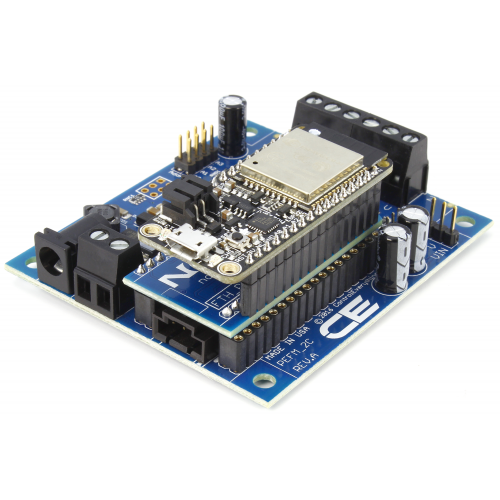

Connect our entire array of relay controllers, digital I/O expanders, PWM controllers, and current monitoring devices to your next IoT application with a simple daisy-chain interface.
This Feather To IoT Adapter For Particle and Feather Modules maps the I2C, SPI,IO and Power connections only. The IO connections are mapped like this
Feather Module
| Feather Module | Particle Electron |
| A0
A1 A2 A3 A4 A5 SCK MOSI MISO RXD TXD SCL SDA A6 A7 A8 A9 A10 A11 A12 VBAT RST |
A0
A1 B2 B3 B4 A2 A3 A5 A4 RXD TXD D1 D0 D2 D7 D6 D5 D4 D3 C5 VBAT RST |
Features
- Interface Adapter for Particle Argon, Boron, Xenon or Feather Modules
- Adapts Particle Argon, Boron, Xenon for Direct Interface to NCD IoT Products
- Feather Modules for Direct Interface to NCD IoT Products
- On Board Logic level shifter to I2C communication
